High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine

Name: High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
Brand: XingKe
Price: 3 USD

Buy cheap High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine product

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Manufacturing Plant, Construction works , Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 150

Showroom Location : None

Condition : New

Function : FILLING, Sealing, counting, Automatic packaging

Application : Commodity, Machinery & Hardware

Packaging Type : Bags, Film, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1100* 750*1550 MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : single materials Packing Machine

Counting method : optical fiber counting/blocking and putting

Bag size : width 40-140 length less than 200 (usually 140)

Packing speed : 1-60 bags/min

Sealing shape : stripe, back seal/three side seal (usually back seal)

Voltage power : 220V/50HZ P=0.6KW

Air supply : 0.4-0.8MPA

Bags both sides : figure cutter tooth shape

sealing material : OPP/CPP/ lamination film

suitable for : such as screws, nuts, flat pads, spring pads, toys, standard parts

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 20 Set/Sets per Month

Price : $3,150.00/sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B861
Counting method	optical fiber counting/blocking and putting
Bag size	width 40-140 length less than 200 (usually 140)
Packing speed:	1-60 bags/min
Sealing shape	stripe, back seal/three side seal (usually back seal)
Voltage power	220V/50HZ P≈0.6KW
Air supply	0.4-0.8MPA
Bag's both sides	figure cutter tooth shape
Dimensions	length 1100mm / width 750mm/height 1550mm
Weight	about 150KG

XK-B861（Automatic counting, coding and filling packaging machine for single

materials of screws, nuts ,toys etc)

Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm. 4.After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2) Scope of application and functional features 1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the molding machine for automatic packaging, and can also use the spare space of the equipment to manually put other materials mixed packaging. 2.It is suitable for "OPP/CPP/ lamination film" as sealing material.

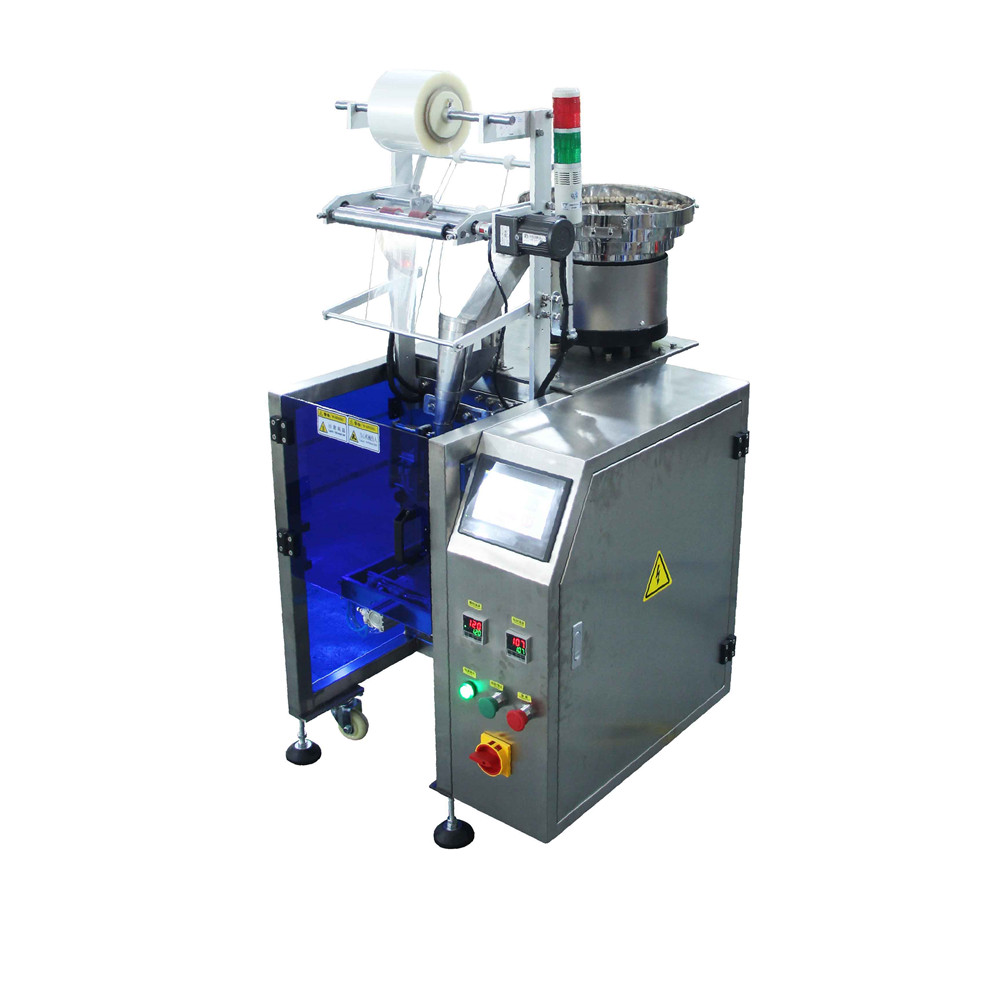

One Vibrator bowl packaging machine

High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine

Packaging machines available

XK-B862 Two Vibrator bowl

Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 1100mm/ width 1000mm/ height 1550mm Weight: about 180KG

XK-B863 Three Vibrator bowl

Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1420mm/ width 820mm/ height 1550mm Weight: about 250KG.

XK-B864 Four Vibrator bowl

Product name: Four Vibrator Bowl Packaging Machine Counting method: optical fiber counting/blocking and putting Bag size: width 40-140, length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: four side seal Voltage power: 220V/50HZ P≈2KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1450mm/ width 980mm/ height 1700mm Weight: about 400KG

XK-B865 Five Vibrator bowl

Counting mode:optical fiber counting/stopping and discharging Bag size:width 40-140 length less than 200 (conventional 140) Packing speed:1-60 packs/min Sealing shape:stripe, back seal/three side seal (usually back seal) Voltage power:220V/50Hz P≈2KW Air source requirement:0.4-0.8Mpa Bag mouth shape:pattern knife tooth shape Dimensions: length 1350mm/ width 1500mm/ height 1550mm Weight:about 350KG
