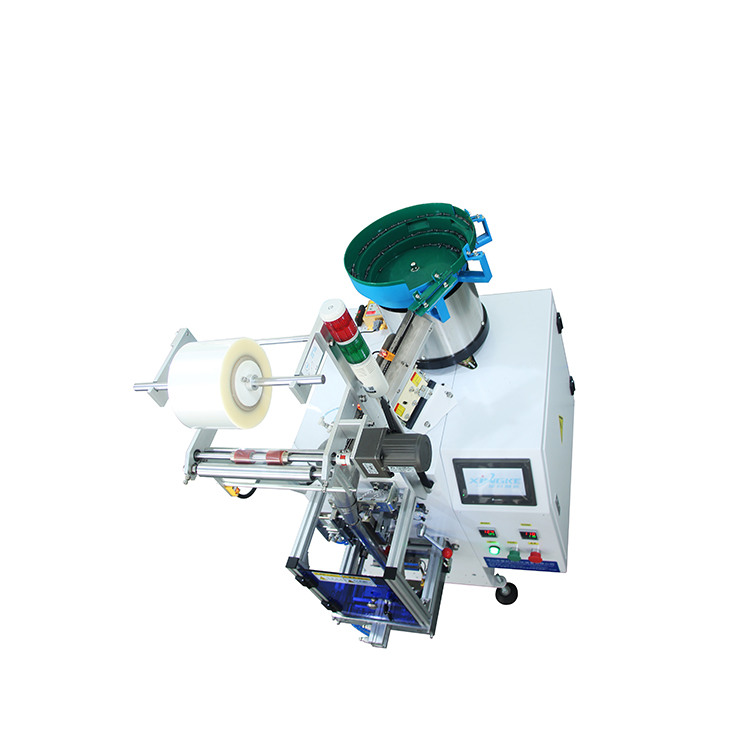

Hardware Screws Nuts Vibrating Bowl Lamination Film Roll Sealing Packaging Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising C

Weight (KG) : 150

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 3920*750*1350

Warranty : 1 years

Key Selling Points : Flexible Manufacturing

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Bag type : Back Sealing

Usage : Filling Packing Machine

Main Function : Weighing Forming Filling Sealing

Keyword : Automatic Snack Food Sugar Packing

Packing material : CPP OPP

Packing speed : 10-60bags/min

Feature : Easy Opperation

Bag length : 30-165mm

Advantage : Servo Motor Control

Packaging Details : Packed in wooden cases

Port : guangzhou

Supply Ability : 100 Set/Sets per Month

Price : $5,470.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Hardware Screws Nuts Vibrating Bowl Lamination Film Roll Sealing Packaging Machine
Automatic counting packaging machine
Counting method: optical fiber counting/blocking and putting
Bag size: width 40-140 length less than 200 (usually 140)
Packing speed: 1-60 bags/min
Sealing shape: stripe, back seal/three side seal (usually back seal)
Voltage power: 220V/50Hz P≈0.6KW
Air supply: 0.4-0.8Mpa
Cutting shape: figure cutter tooth shape
Dimensions:length 1100mm / width 750mm/height 1550mm
Weight: about 150KG
Hardware Screws Nuts Vibrating Bowl Lamination Film Roll Sealing Packaging Machine
Technical characteristics
1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function,
output count.
2.Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3.The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.
4.After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing,
labeling machine, hoist and other expansion equipment.
Scope of application and functional features
 1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the molding machine for automatic packaging, and can also use the spare space of the equipment to manually put other materials mixed packaging.
2.It is suitable for "OPP/CPP/ lamination film" as sealing material.
