Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist

Product Categories
Zhongshan Xingke Automation Equipment Co., Ltd.
Contact Now

Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising C

Weight (KG) : 250

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Laminating, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 2350*1000*1550MM

Warranty : 1 years

Key Selling Points : Multifunctional

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Counting method : fiber counting/blocking and putting

Bag size : width 40-140 length 200 ( conventional 140)

Sealing shape : stripe, back seal/three side seal(usually back seal)

Air supply : 0.4-0.8MPA

Packing material : CPP OPP

Feature : Easy Opperation

Bag mouth shape : figure cutter tooth shape

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $4,900.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Product Description

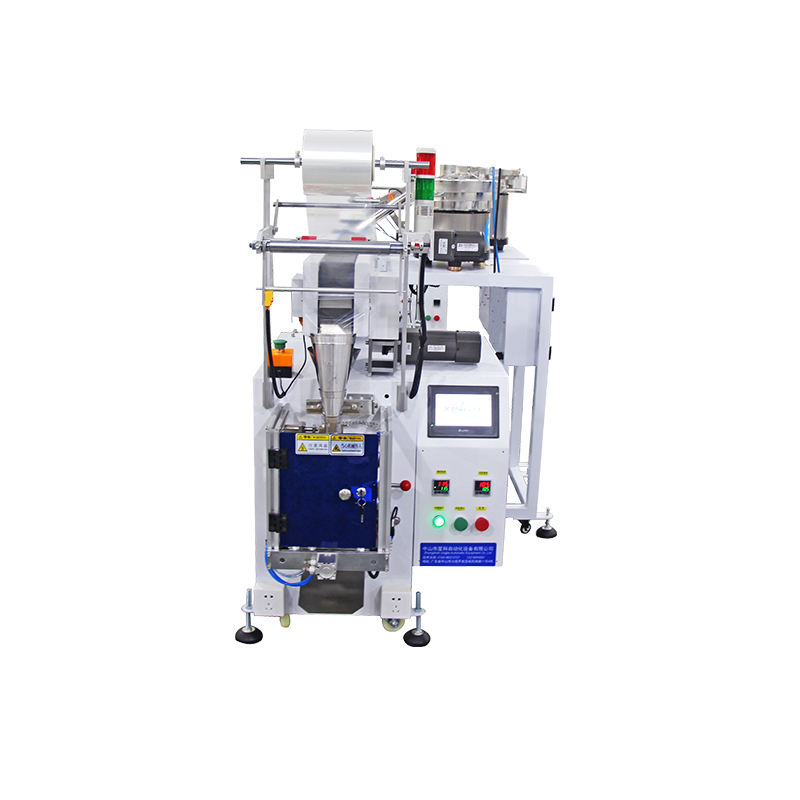

Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist

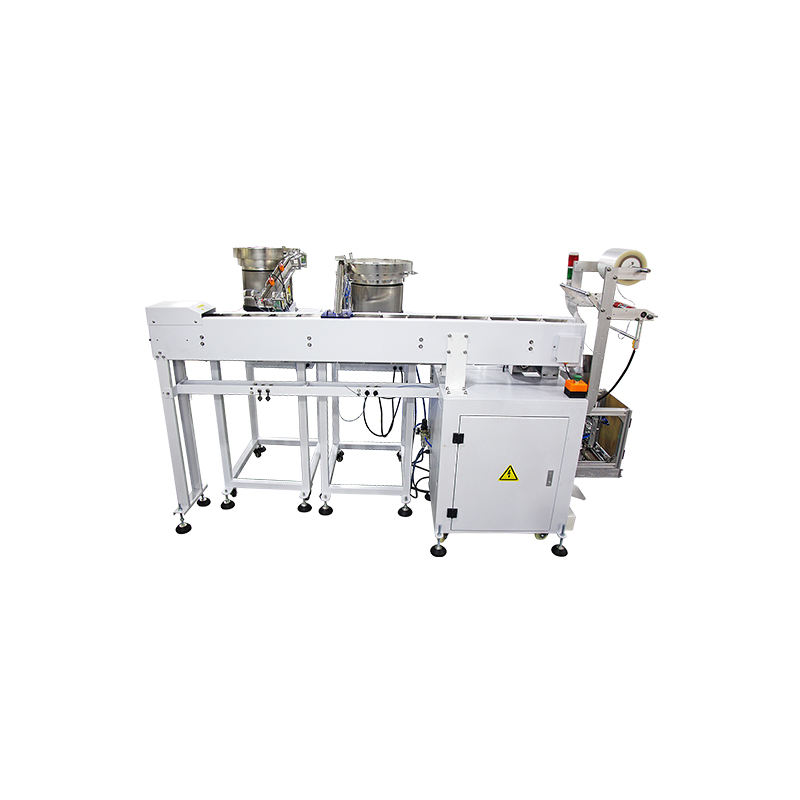

Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Equipment model: XK-B862T Product name: 2 Vibrator Bowls Chain Bucket Packaging Machine Counting method: fiber counting/blocking and putting Bag size: width 40-140 length 200 ( conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal(usually back seal) Voltage power: 220V/50HZ P≈0.6K W Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 2350mm/ width 1000mm/ height 1550mm Weight: about 250KG
1) Technical characteristics 1.Automatic filling, automatic packing, sealing function, output count. 2.Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3.The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing,labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1.This product is suitable for products with long, irregular product shapes, large length and width ratios, or products that have extremely high surface requirements such as electroplating, spray painting, baking varnish and other process treatments, electroplating process plastic products, toys, bolts, screwdrivers, Data line, etc., using manual material input, belt conveying material to the forming, automatic filling and packaging. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Company Profile
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Buyer feedback
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Exhibition
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Certifications
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
FAQ
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
Multilane Vertical Fill Sealing Small Parts High Speed Packaging Machine With Hoist
