Automatic Granules Toys Parts Screws Fasteners Hinges Plastic Parts Bag Packaging PLC Control Trailer Packing Machine

Name: Automatic Granules Toys Parts Screws Fasteners Hinges Plastic Parts Bag Packaging PLC Control Trailer Packing Machine
Brand: XingKe
Price: 31 USD

Buy cheap Automatic Granules Toys Parts Screws Fasteners Hinges Plastic Parts Bag Packaging PLC Control Trailer Packing Machine product

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 1000

Showroom Location : None

Condition : New

Function : FILLING, Sealing, counting, Automatic packaging, High Effieciency

Application : Commodity, Medical, Machinery & Hardware, screws, nuts, flat pads, spring pads, toys, standard parts

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50HZ

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 6800*1700*1470MM

Warranty : 1 years

Key Selling Points : High Productivity

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Air supply : 0.4-0.8MPA

Counting mode : optical fiber counting/blocking and placing

Bag size : 40-140 wide and 200 long

Sealing shape : stripe, back seal/three side seal

Air source requirement : 0.4-0.8MPA

Pocket mouth shape : pattern knife tooth shape

After-sales Service Provided : Video Technical Support

After Warranty Service : Video Technical Support\Online Support\

Packaging Details : Packed in wooden cases

Port : guangzhou

Supply Ability : 100 Set/Sets per Month

Price : $31,000.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B874Z
Counting method	optical fiber counting/blocking and placing
Bag size	width 40-140 length 200 (conventional 140)
Packing speed	1-60 bags/min
Sealing shape	stripe, back sealing/three side sealing (conventional back sealing)
Voltage power	20V/50HZ P ≈ 3KW
Air supply	0.4-0.8MPA
Bag mouth shape	figure cutter tooth shape
Dimensions	length 6800mm/ width 1700mm/ height 1470mm
Weight	about 1000KG

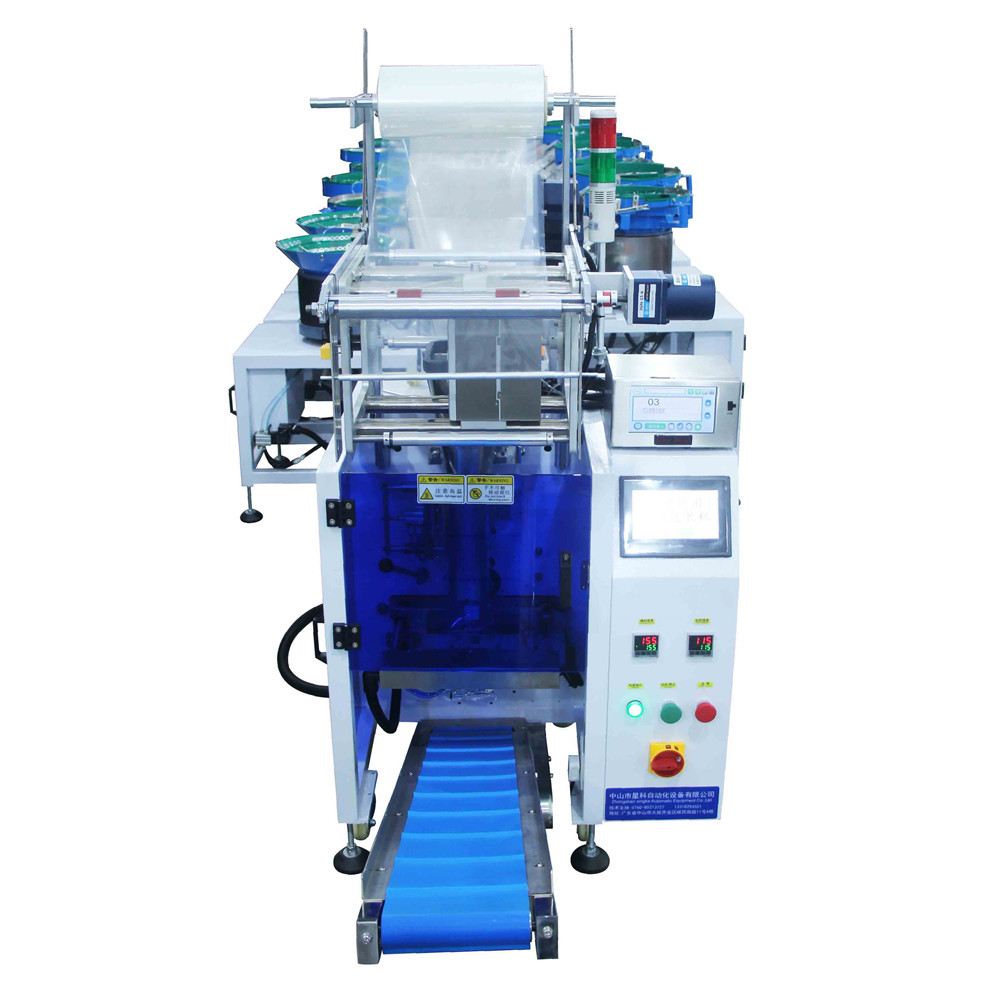

Automatic Granules Toys Parts Screws Fasteners Hinges Plastic Parts Bag Packaging PLC Control Trailer Packing Machine

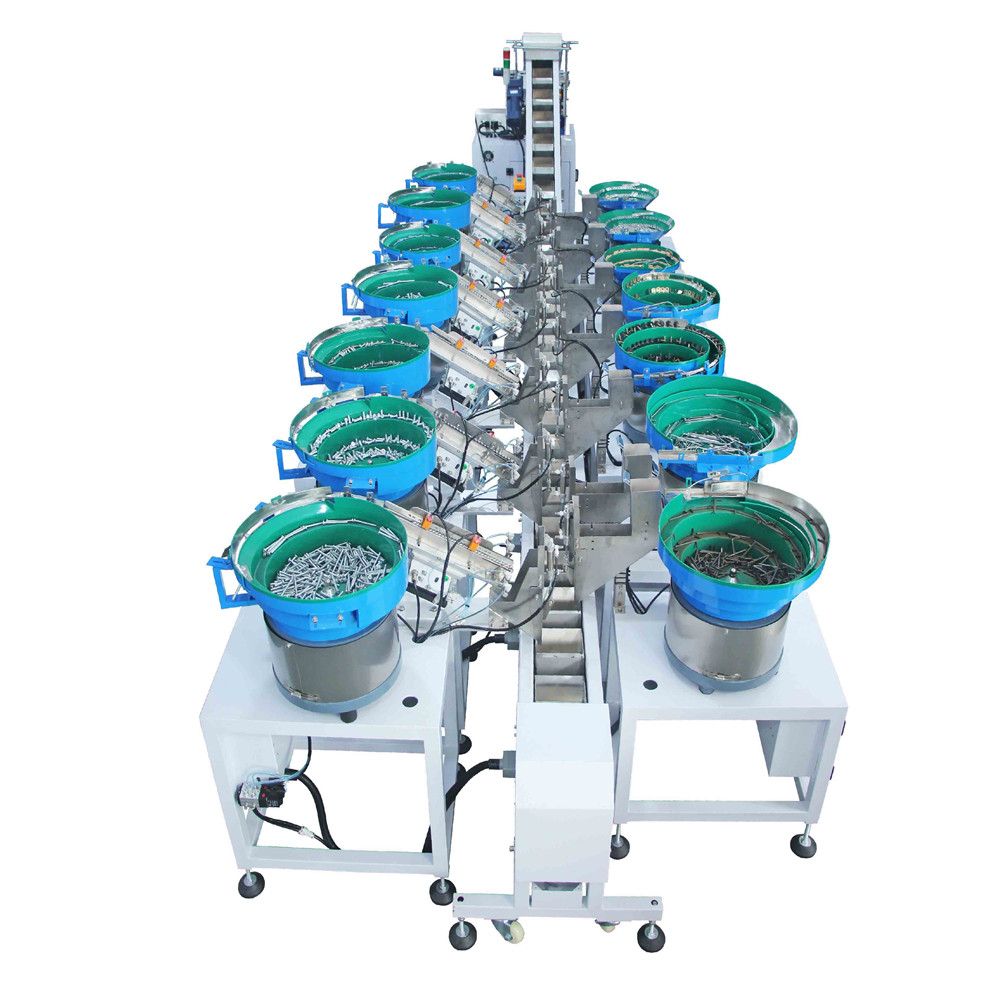

XK-B874Z (14 disc corner type packaging machine)

(1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The intelligent temperature control system is adopted, with stable temperature control and adjustable temperature as required. 3. The length of the packaging bag is adjustable, and the total number of packages is adjustable. When the set number is reached, an automatic alarm will be given. 4. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed.

(2) Scope of application and functional characteristics 1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses the chain bucket climbing type to drive the material box to rotate, manually put the materials into the material box, and the chain bucket fills the products into the molding machine for automatic packaging. This product uses the climbing method to reduce the height of the trailer. More than 14 vibrating disk stations can be added behind the trailer, It can continue to mix and automatically package materials of more specifications, and can also use the spare space for manual feeding. 2. Applicable to "OPP/CPP/composite membrane" as sealing material
