automatic small business screw fastener hardware packing machine

Name: automatic small business screw fastener hardware packing machine
Brand: xingke
Price: 8 USD

Buy cheap automatic small business screw fastener hardware packing machine product

Place of Origin : Guangdong, China

Brand Name : xingke

Condition : New

Weight (KG) : 350

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Motor, Pressure vessel, Other

Warranty : 1 Year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location : None

Product name : Vibratory Bowl Feeder

Counting mode : optical fiber counting/blocking and putting

Bag size : width 40-140 length less than 200 (conventional 140)

Packing speed : 1-60 bags/min

Sealing shape : stripe, back seal/three side seal

Feature : High Efficiency

Voltage : 220V/50HZ

220V/50HZ : 0.4-0.8MPA

Bag's both sides : figure cutter tooth shape

Dimensions : length 1350mm/ width 1500mm/ height 1550mm

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $8,200.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Device model:	XK-B865T
Bag size:	width 40-140 length less than 200 (conventional 140)
Packing speed:	1_60 packs/min
Voltage power:	220V/50HZ P≈2KW
Dimensions:	length 1350mm/ width 1500mm/ height 1550mm
weight:	about 350KG
Sealing shape:	Stripes, back seal/three-sided seal (conventional back seal)

automatic small business screw fastener hardware packing machine

1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag is adjustable, the total number of packaging is adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1.This product is suitable for automatic mixing or separate packaging of 5 kinds of materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment. 2.It is suitable for "OPP/CPP/ lamination film" as sealing material.

This product is suitable for a variety of materials automatic counting feeding mix or separate packaging, such as screws, nuts, flat washers, spring washers, toys, standard parts and so on

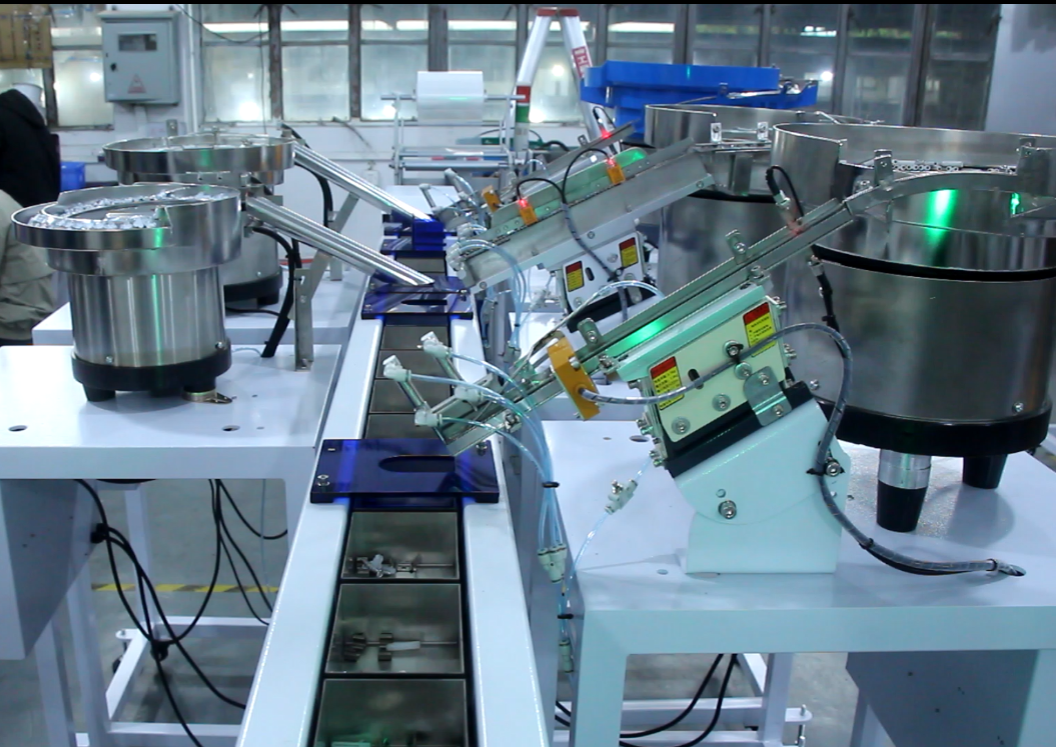

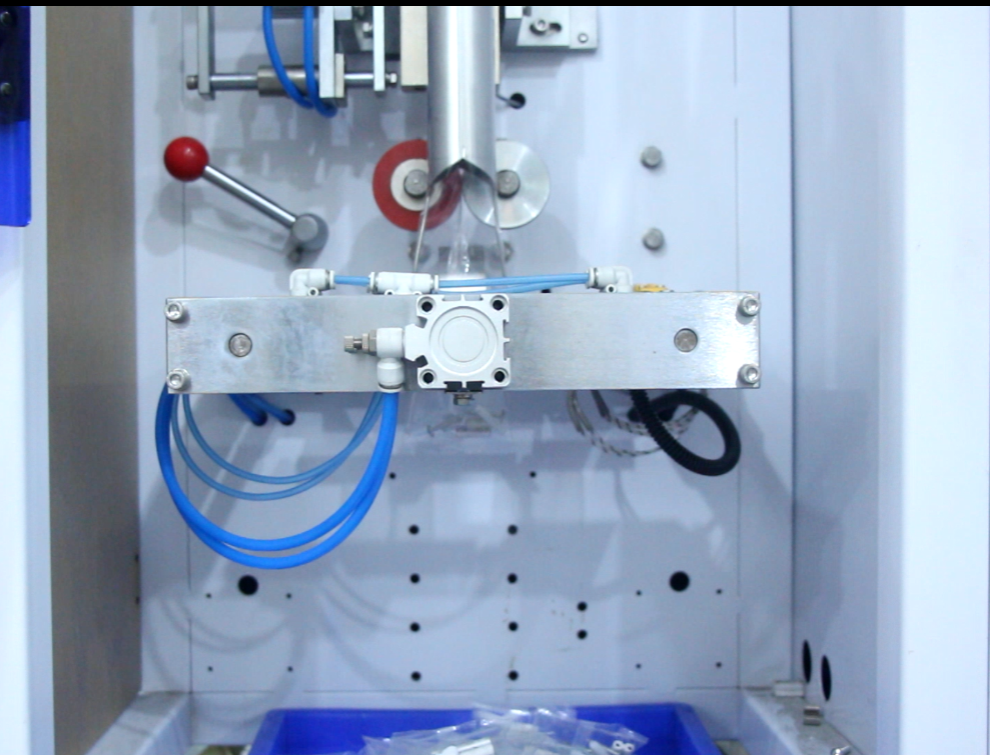

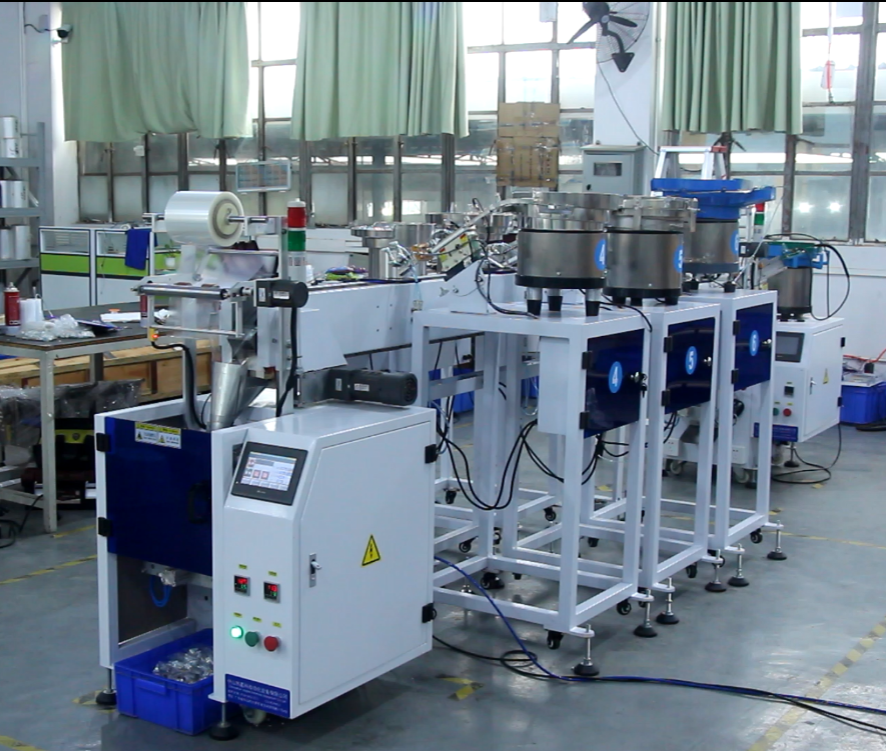

MORE DETAILS PICTURE

We have a variety of machine patent certificates and export certificates, welcome to contact！！

automatic small business screw fastener hardware packing machine Images
