Multifunctional Packaging Machine Metal Packaging Machine Screw Packing Machine

Place of Origin : China

Condition : New

Weight (KG) : 150

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Motor, Pump

Warranty : 1 Year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location : None

Equipment model : XK-B861T

Counting method : fiber counting/stopping and discharging

Bag size : width 40-140 within 200 length

Packing speed : 1-60 bags/min

Seal shape : stripe, back seal/trilateral seal (normally back seal)

Voltage power : 220V/50Hz P=0.6KW

Air source : 0.4-0.8MPA

Bag mouth shape : figure cutter tooth shape

Dimensions : 1300mm*1020mm*1500mm

Weight : 150kg

Packaging Details : Packed in wooden cases

Port : guangzhou shezhen

Supply Ability : 50 Set/Sets per Month

Price : $3,651.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

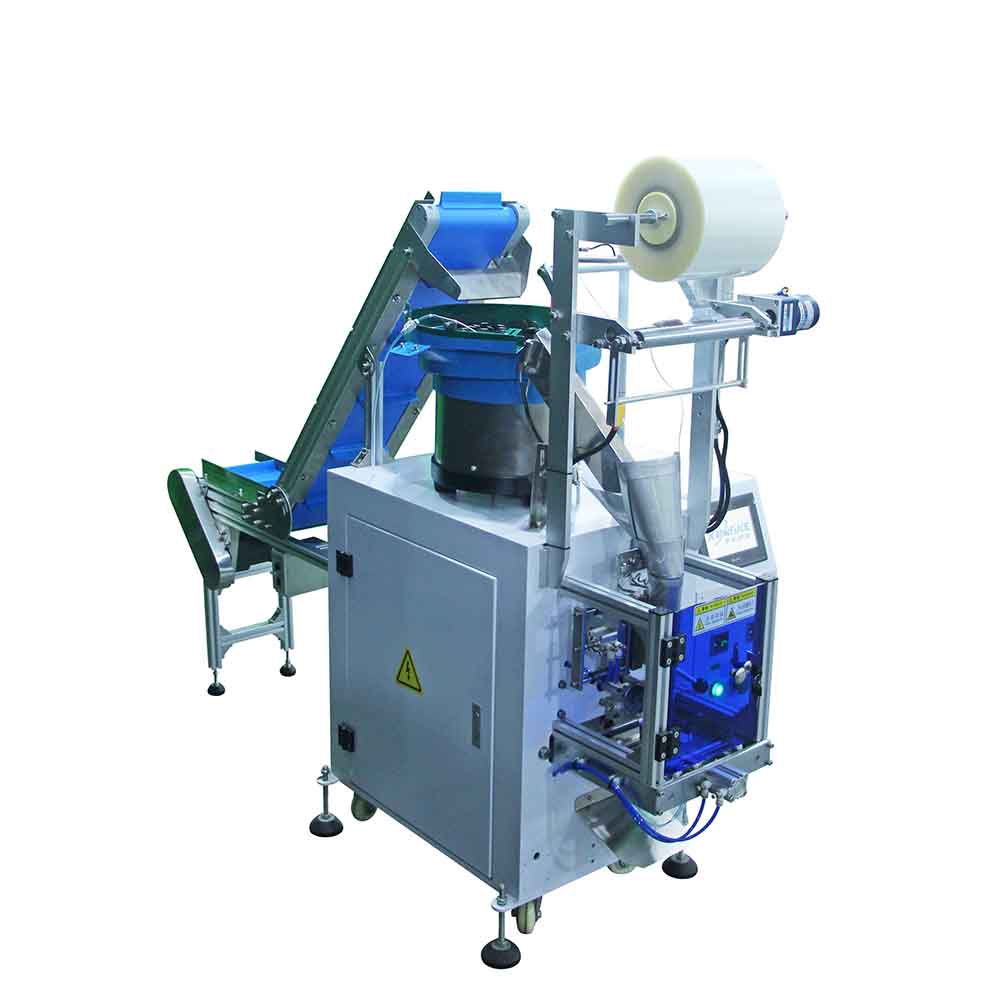

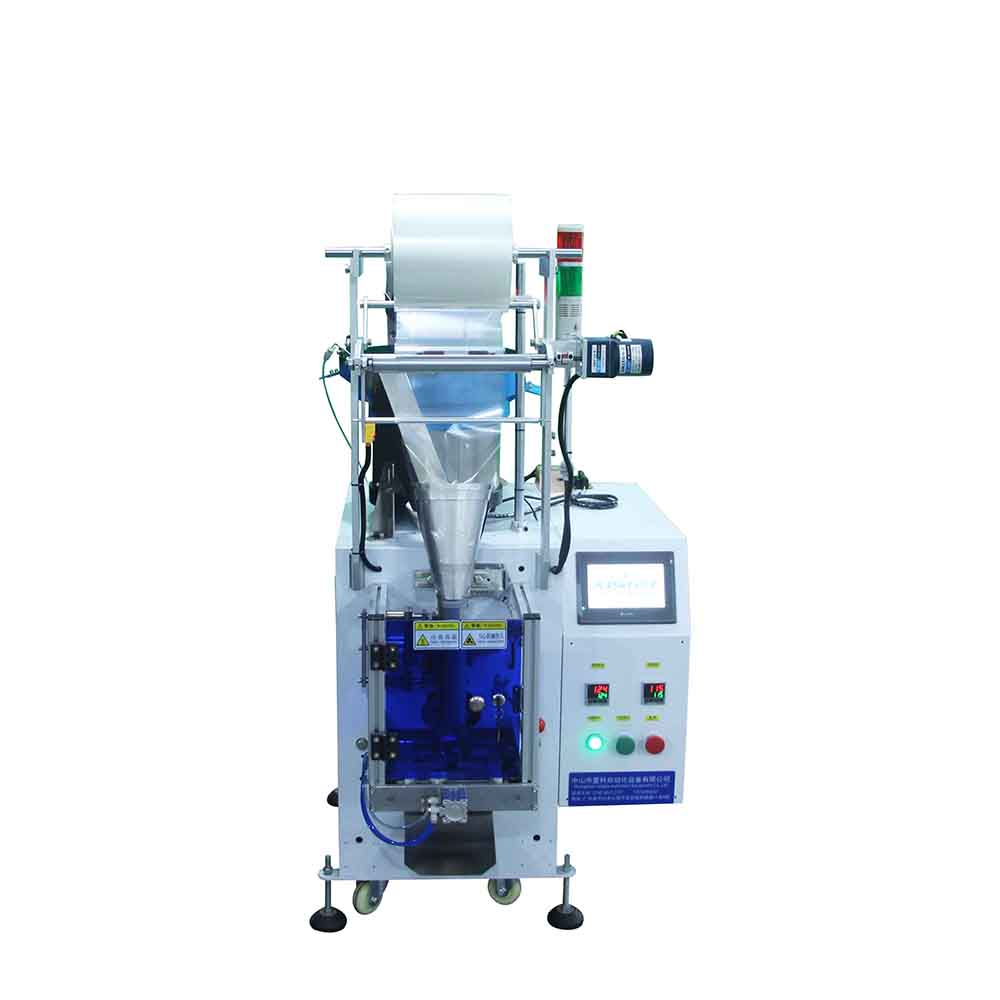

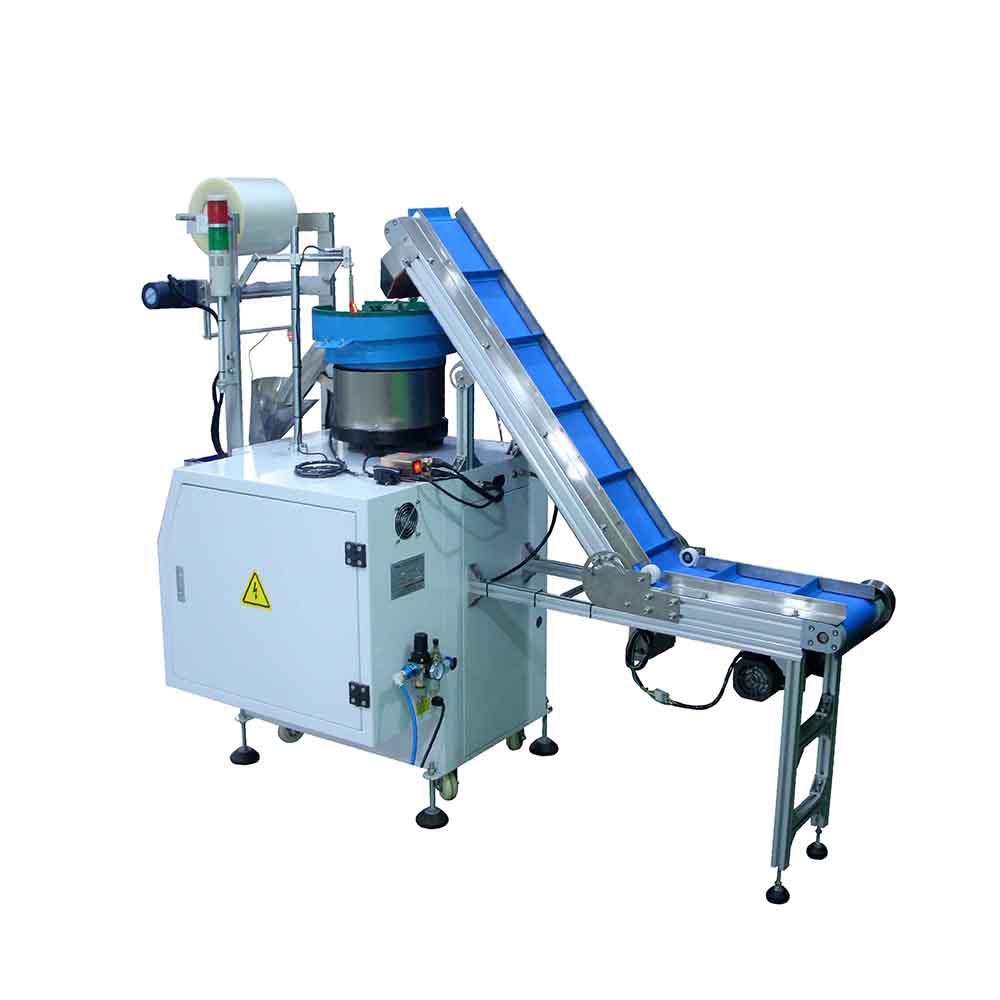

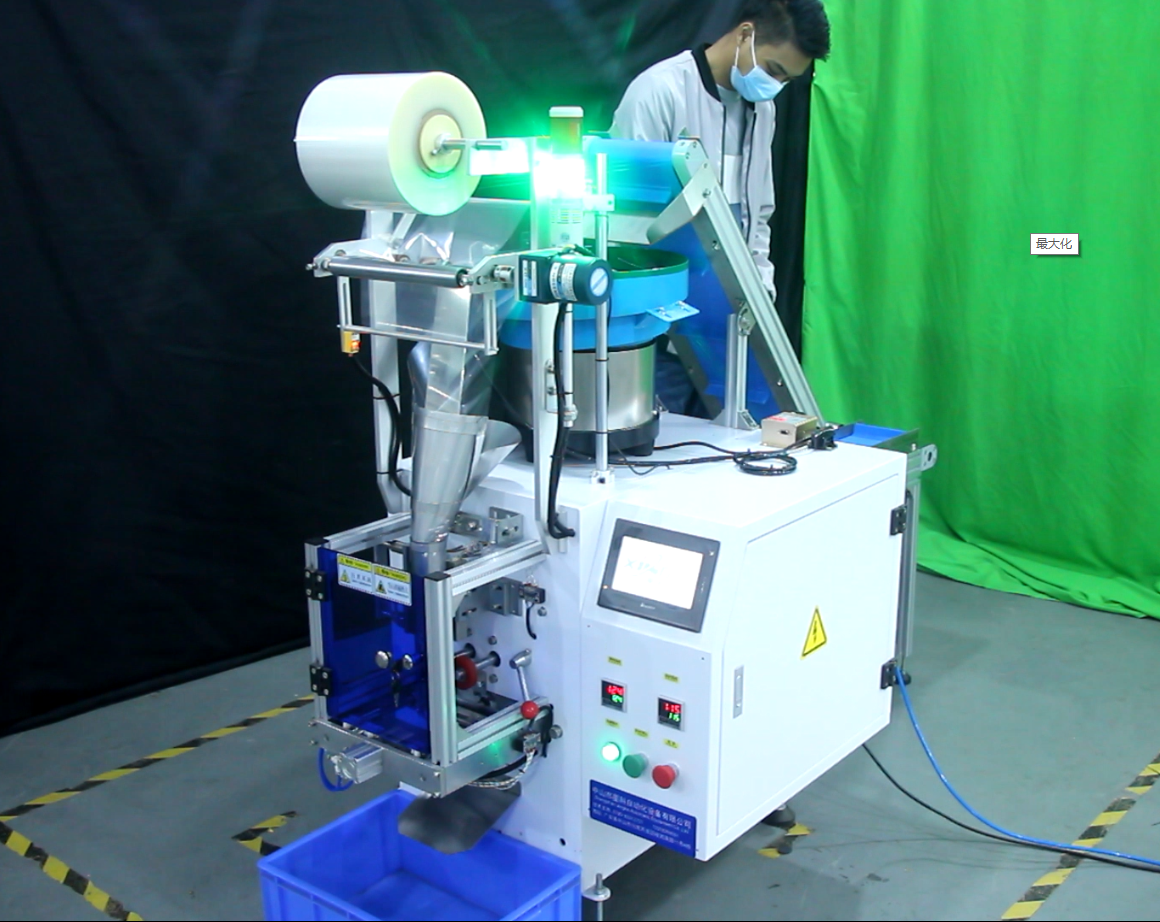

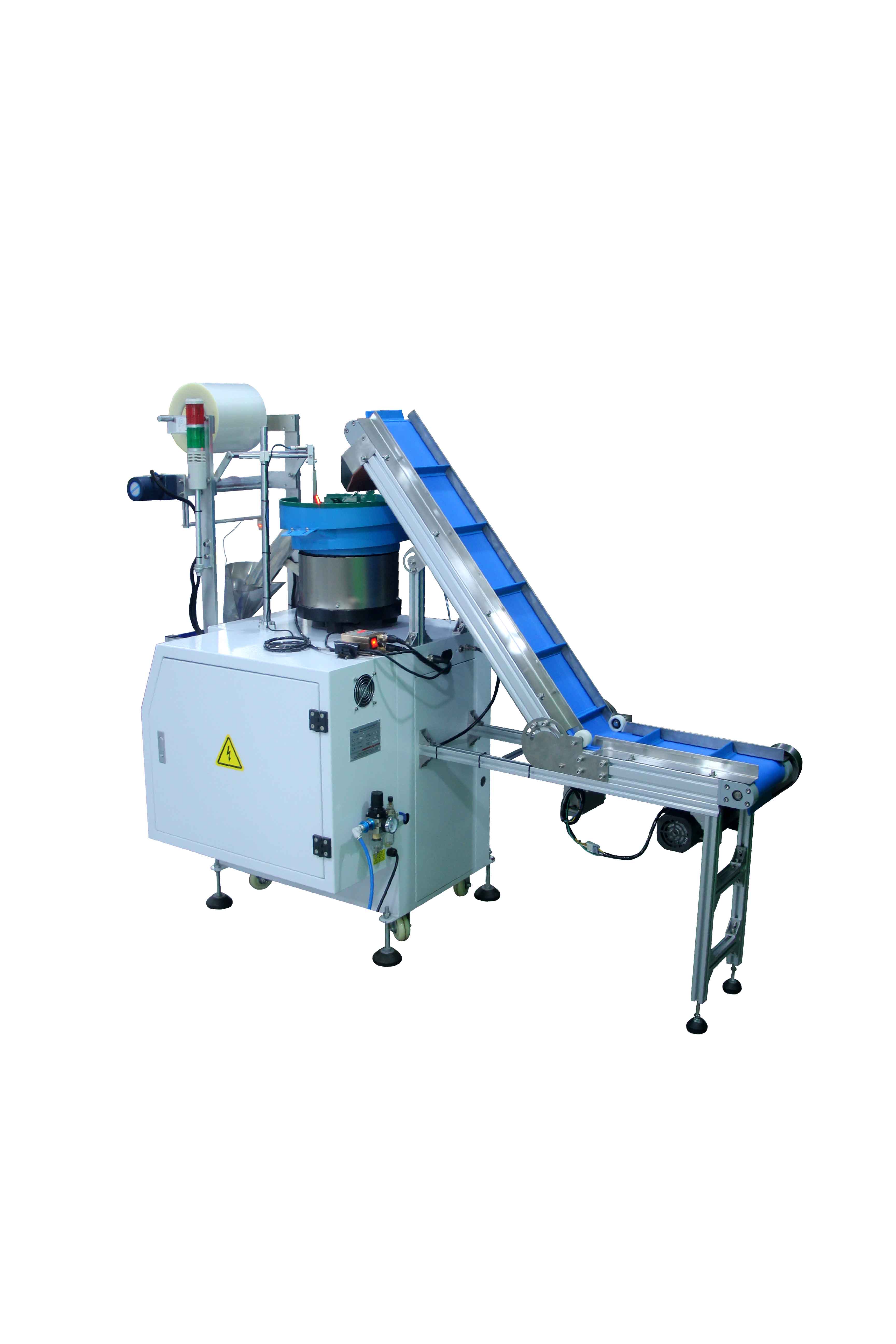

XK-B861T One Vibrator Bowl Packing Machine

Name	XK-B861T
Counting mathod	optical fiber counting/blocking and putting
Bag size	width 40-140 length less than 200 (usually 140)
Packing speed	1-60 bags/min
Sealing shape	stripe, back seal/three side seal (usually back seal)
Voltage power	220V/50HZ P≈0.6KW
Air supply	0.4-0.8MPA
Bag's both sides	figure cutter tooth shape
Dimensions	1300MM1020MM1500MM
Weight	150kg

Multifunctional Packaging Machine Metal Packaging Machine Screw Packing Machine

XK-B861T(One vibrator bowl packing machine）
(1) Technical features

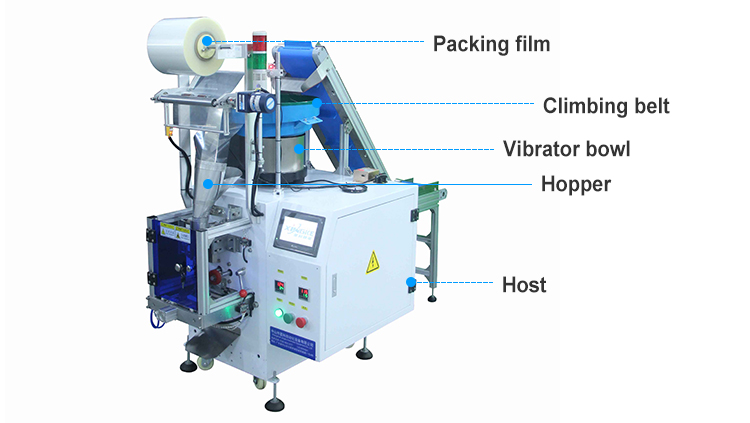

1. The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packs, seals, and counts output. 2. The intelligent temperature control system is adopted, the temperature control is stable, and the temperature can be adjusted according to the needs. 3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the set number of times is automatically alarmed. 4. After packaging, the bag shape is uniform, regular, beautiful and firm. It can also be equipped with expansion equipment such as coding machine, check weighing machine, labeling machine and elevator, and other materials can be mixed and packaged manually in the spare space of the equipment. (2) Scope of application and functional characteristics 1.This product is suitable for automatic packaging of single materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After the vibration plate is automatically counted, the product is filled into the automatic packaging of the molding machine, and the climbing belt is added to connect other machines to put materials into the vibration plate. 2. It is suitable for "OPP/CPP/composite film" as sealing material.
