Factory Customized Multi-function Toy Bricks Small Plastic Parts Counting Packaging Machine

Name: Factory Customized Multifunction Toy Bricks Small Plastic Parts Counting Packaging Machine
Brand: XingKe
Price: 4 USD

Buy cheap Factory Customized Multi-function Toy Bricks Small Plastic Parts Counting Packaging Machine product

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 180

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Commodity, Medical, Machinery & Hardware, Textiles, screws, nuts, plain washers, spring washers, toys, standard parts

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50HZ

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1100*1000*1550 MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Counting method : Counting method

Keyword : Packaging Machinery Equipment

Bag size : width 40-140 length less than 200

Sealing shape : stripe, back seal/three side seal

Air supply : 0.4-0.8MPA

Bag's both sides : figure cutter tooth shape

Advantage : Servo Motor Control

Feature : Easy Opperation

After-sales Service Provided : Video Technical Support

Packaging Details : Packed in wooden cases

Port : guanhzhou

Supply Ability : 20 Set/Sets per Month

Price : $4,150.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B862
Counting method	optical fiber counting/blocking and putting
Bag size	width 40-140 length 200 (conventional 140)
Packing speed	1-60 bags/min
Sealing shape	stripe, back sealing/three side sealing (conventional back sealing)
Voltage power	220V/50HZ P≈0.6KW
Air supply	0.4-0.8MPA
Bag mouth shape	figure cutter tooth shape
Dimensions	length 1100mm/ width 1000mm/ height 1550mm
Weight	about 180KG

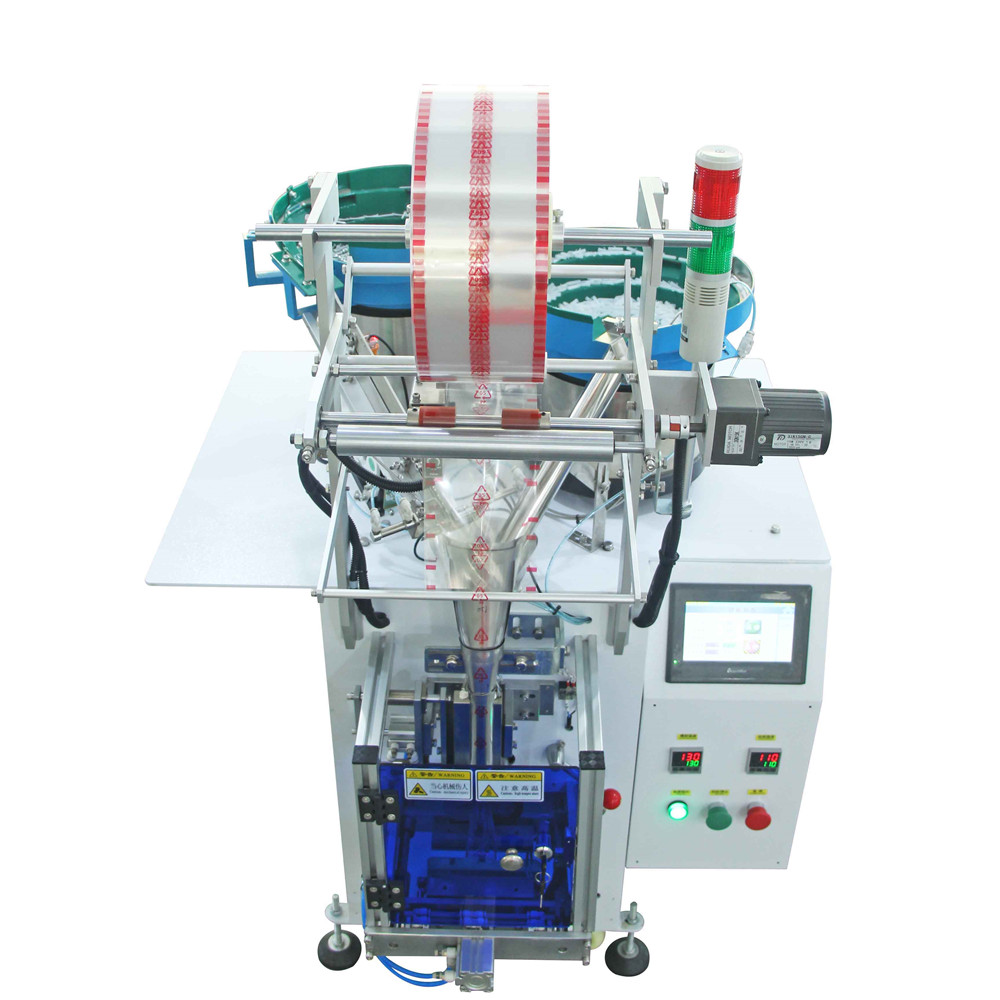

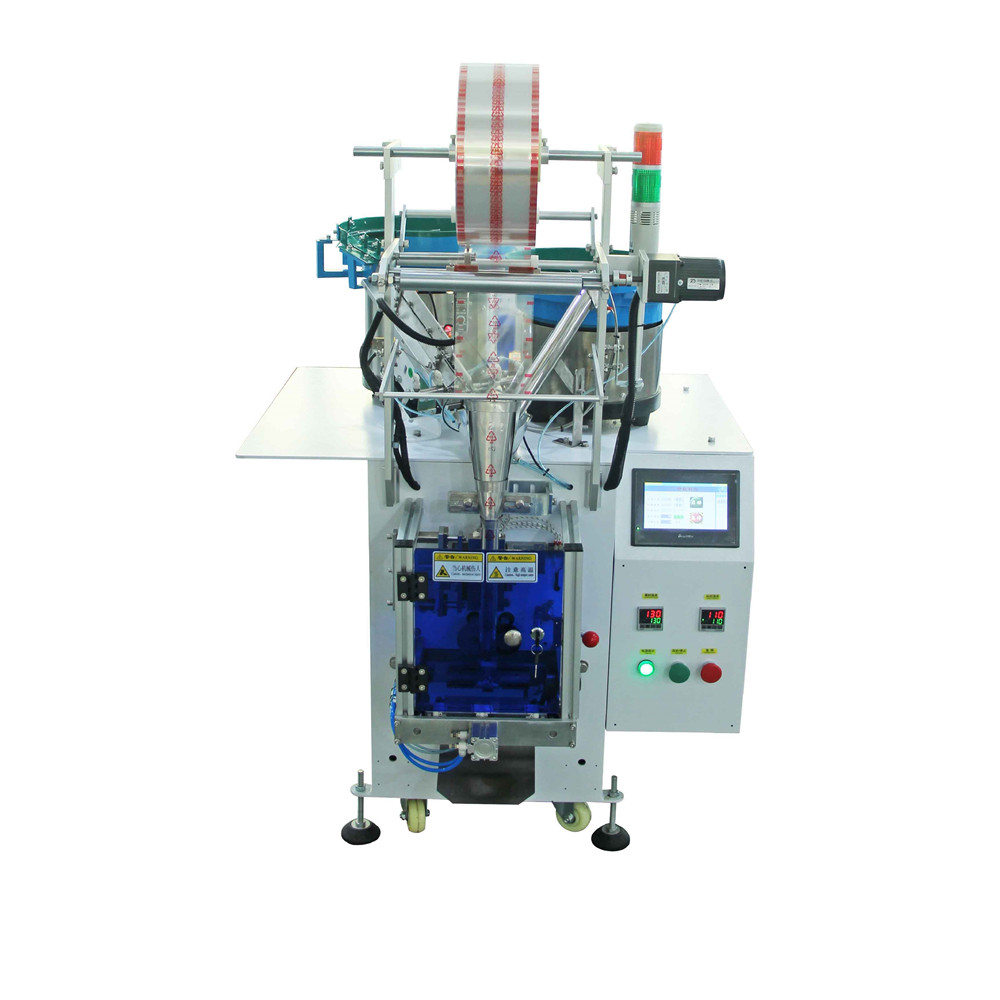

Factory Customized Multi-function Toy Bricks Small Plastic Parts Counting Packaging Machine

XK-B862（Xingke 2 Vibrator Bowls Screw Metal Parts Hardware Spring Washers Packaging Machine）

1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other equipment. 2) Scope of application and functional features 1. This product is applicable to automatic mixing under 2 kinds of materials or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product uses chain bucket turns box, vibrator bowl, automatic counting on materials to box, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space. 2. It is suitable for "OPP/CPP/ lamination film " as sealing material.
