High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 700

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging, Sealing Automatically

Application : Machinery & Hardware, screws, nuts, flat pads, spring pads, toys, standard parts,

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50Hz

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 3800*1200*1550MM

Warranty : 1 years

Key Selling Points : High Productivity

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Counting mode : optical fiber counting/blocking and placing

Bag size : 40-140 wide and 200 long

Sealing shape : stripe, back seal/three side seal

Air source requirement : 0.4-0.8Mpa

Pocket mouth shape : pattern knife tooth type

After-sales Service Provided : Video Technical Support

Keyword : Packing Filling Machine

After Warranty Service : Video Technical Support\Online Support\

Packaging Details : Packed in wooden cases

Port : guangzhou

Supply Ability : 100 Set/Sets per Month

Price : $9,600.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
Equipment model
XK-B866T
Counting method
optical fiber counting/blocking and placing
Bag size
40-140 wide and 200 long (conventional 140)
Packing speed
1-60 bags/min
Sealing shape
 stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
220V/50Hz  P ≈ 1.5KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
3800mm long/1200mm wide/1550mm high
Weight
about 700KG
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier

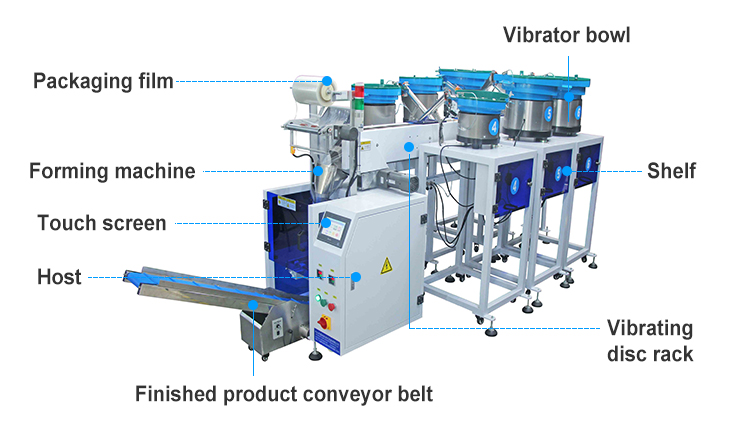

XK-B866T (6-coil chain bucket packing machine)

(1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The intelligent temperature control system is adopted, with stable temperature control and adjustable temperature as required. 3. The length of the packaging bag is adjustable, and the total number of packages is adjustable. When the set number is reached, an automatic alarm will be given. 4. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed. (2) Scope of application and functional characteristics 1. This product is suitable for automatic mixing or separate packaging of less than six kinds of materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses the chain bucket type to drive the material box to rotate, the vibrating disk automatically counts the materials into the material box, the chain bucket fills the product into the automatic packaging of the shaper, and other materials can also be put into the mixed packaging manually using the spare space of the equipment. 2. It is applicable to "OPP/CPP/composite membrane" as sealing material.
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
High accuracy plastic parts vibration counting machine counting small automatic screws nut packing machine supplier
