Multi Function Two Vibrator Bowl Packaging Machinery Screws Nuts Packaging Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 180

Showroom Location : None

Condition : New

Function : Wrapping, Sealing, counting, Automatic packaging

Application : Commodity, Medical, Machinery & Hardware, screws, nuts, plain washers, spring washers, toys, standard parts

Packaging Type : Bags

Packaging Material : OPP/CPP/ lamination film

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50HZ

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1100*1000*1550 MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Two Vibrator Bowl Packaging Machine

Counting method : optical fiber counting/blocking and putting

Bag size : width 40-140, length less than 200

Sealing shape : stripe, back seal/three side seal

Packing speed : 1-60 bags/min

Feature : Easy Opperation

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Air supply : 0.4-0.8MPA

Bag's both sides : figure cutter tooth shape

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 20 Set/Sets per Month

Price : $4,350.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

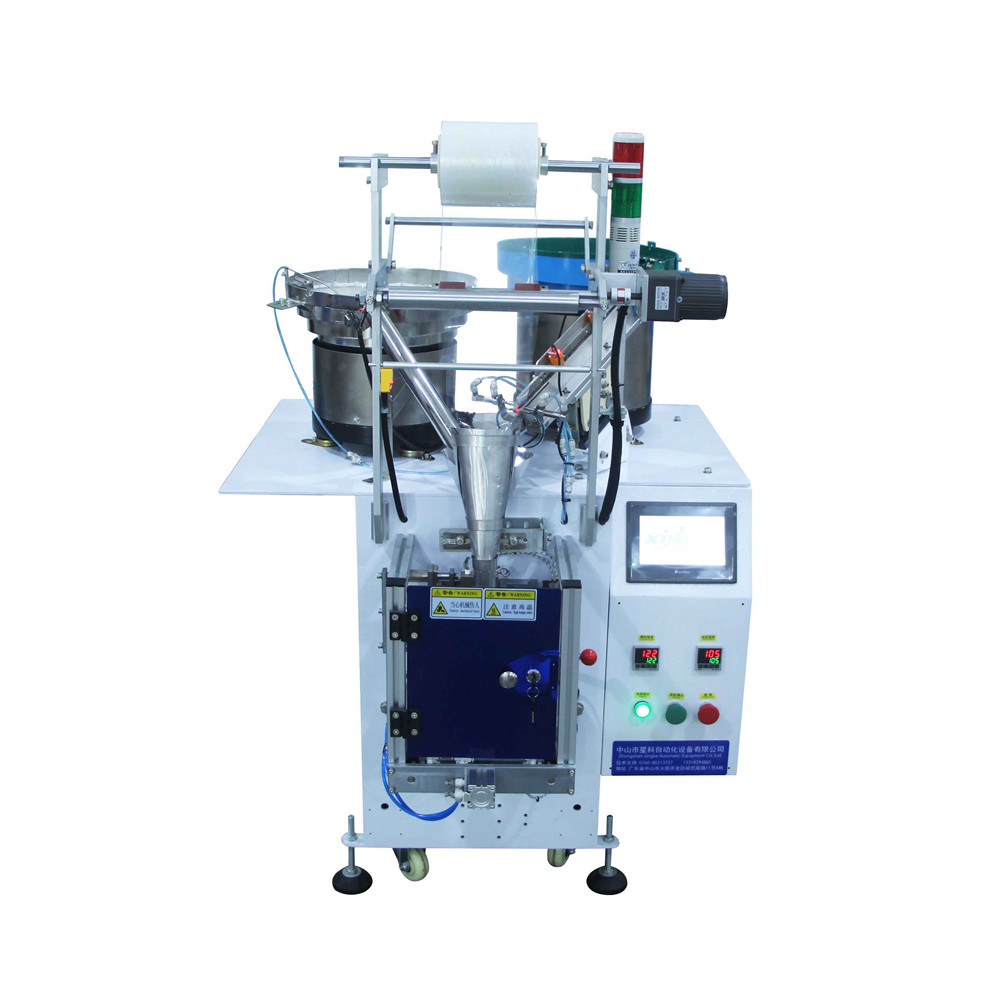

Multi Function Two Vibrator Bowl Packaging Machinery Screws Nuts Packaging Machine


XK-B862(Two Vibrator Bowl Packaging Machine)

1) Technical characteristics 1. Automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2) Scope of application and functional features 1.It is suitable for automatic mixing or separate packaging of 2 kinds of materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. this product uses chain bucket turns box, vibrator bowl, automatic counting on materials to box, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space. 2. It is suitable for "OPP/CPP/ lamination film " as sealing material.
Equipment model
XK-B862
Counting method
optical fiber counting/blocking and putting
Bag size
width 40-140 length 200 (conventional 140)
Packing speed
1-60 bags/min
Sealing shape
 stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
220V/50HZ P≈0.6KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
length 1100mm/ width 1000mm/ height 1550mm
Weight
about 180KG
