High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine

Product Categories
Zhongshan Xingke Automation Equipment Co., Ltd.
Contact Now

High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 1300

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 4700*2100*1650MM

Warranty : 1 years

Key Selling Points : High Productivity

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

The length of the bag : Less than 200

Air supply : 0.4-0.8MPA

Can increase the 1 : hoist

Can increase the 2 : Check weight said

Can increase the 3 : Code printer

Can increase the 4 : The cursor

Service : Video technical support

After Warranty Service : Spare parts

Certification : ce

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $18,650.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine

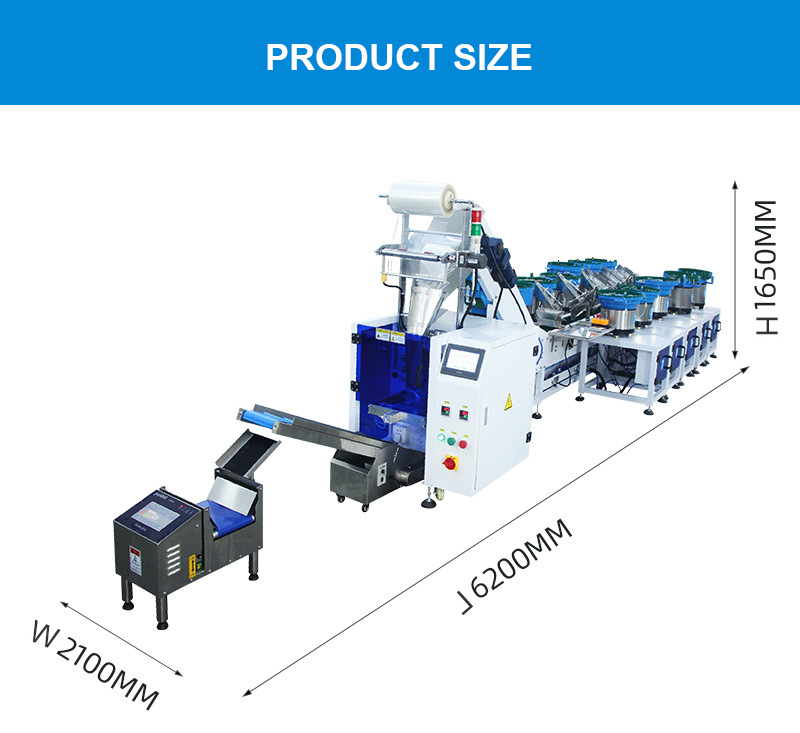

Equipment model: XK-B870Z Counting method: optical fiber counting/blocking and putting Bag size: width 40-140, length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe/ back seal/3 sides seal (usually back seal) Voltage power: 220V/50HZ P≈3KW Air supply: 0.4-0.8MPA Bag sealing shape: figure cutter tooth shape Dimensions: length 4700mm/ width 2100mm/ height 1650mm Weight: about 1300KG
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine

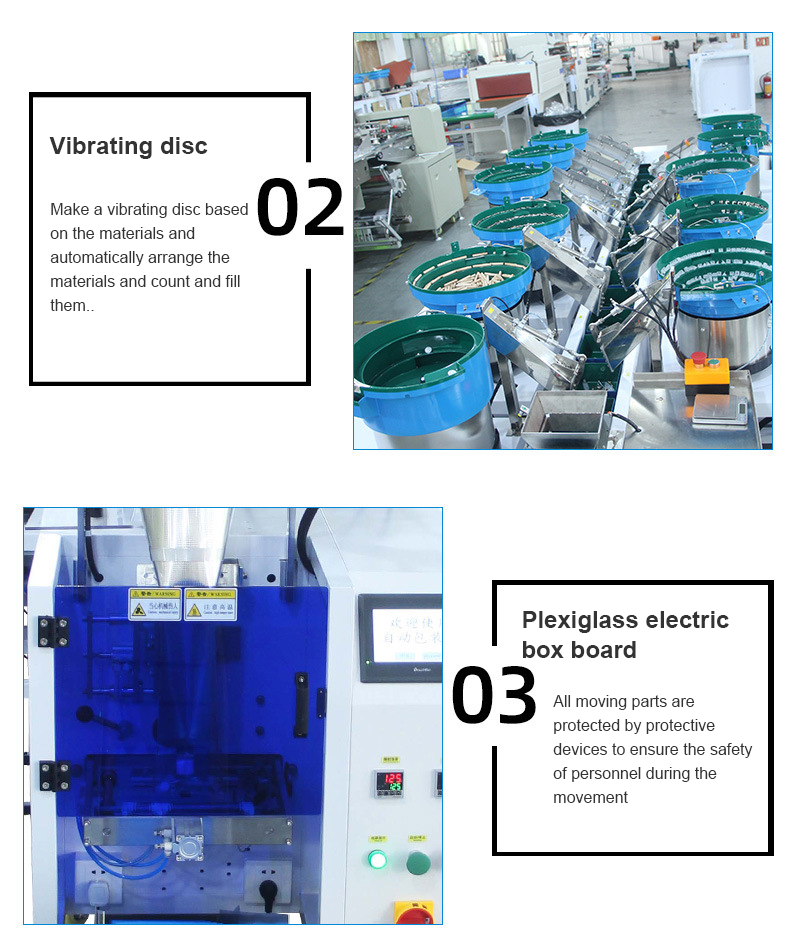

XK-B871Z( 11 items products mixing packaging machine) 1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 11 vibrator bowls work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine
High-Performance Automatic Equipment Screw Hardware Accessories Plastic Pouch Packing Machine
