Pva Film Sachet Pouch Multi - disc Screw Hardware Plastic Bags Rotary Bucket Type Packing Machine

Name: Pva Film Sachet Pouch Multi disc Screw Hardware Plastic Bags Rotary Bucket Type Packing Machine
Brand: XingKe
Price: 17 USD

Buy cheap Pva Film Sachet Pouch Multi - disc Screw Hardware Plastic Bags Rotary Bucket Type Packing Machine product

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 1000

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : length 4700mm/ width 2100mm/ height 1650mm

Warranty : 1 years

Key Selling Points : High Productivity

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Multi-Function Packaging Machine

Air supply : 0.4-0.8MPA

Counting mode : optical fiber counting/stopping and discharging

Service : Video technical support

Bag size : width 40-140 length less than 200

After Warranty Service : Spare parts

Sealing shape : stripe, back seal/three side seal

Voltage power : 220V/50Hz

Certification : ce

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $17,500.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

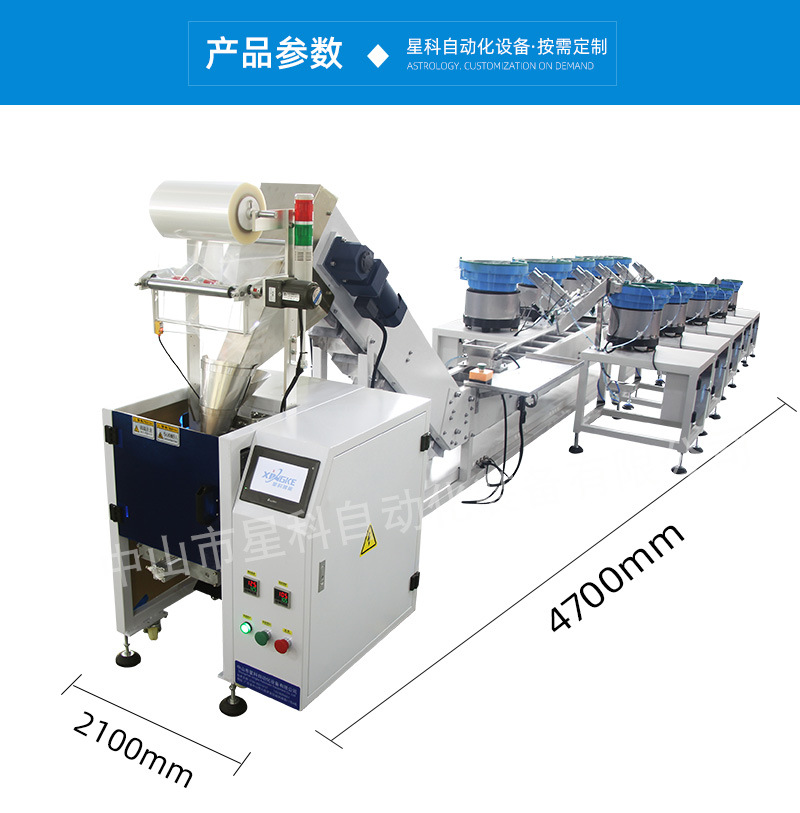

Equipment model: XK-B870Z Counting mode: optical fiber counting/stopping and discharging Bag size: width 40-140 length less than 200 (conventional 140) Packing speed: 1-60 packs/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50Hz P≈3KW Air source requirement: 0.4-0.8Mpa Air source requirement: 0.4-0.8Mpa Dimensions: length 4700mm/ width 2100mm/ height 1650mm Weight: about 1000KG

Can increase the	hoist
Can increase the	Check weight said
Can increase the	Code printer
Can increase the	The cursor

Pva Film Sachet Pouch Multi - disc Screw Hardware Plastic Bags Rotary Bucket Type Packing Machine

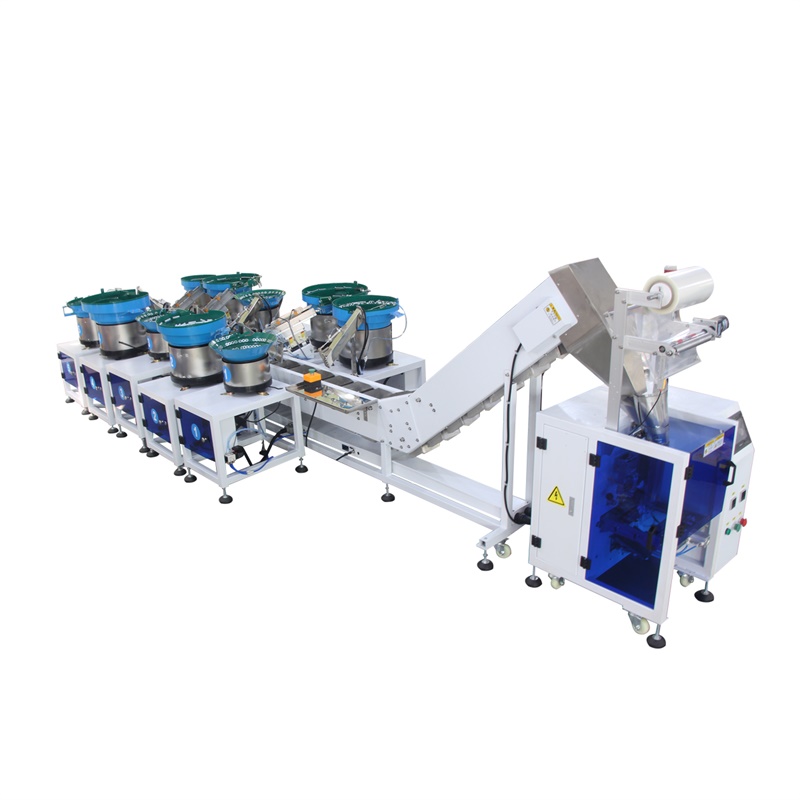

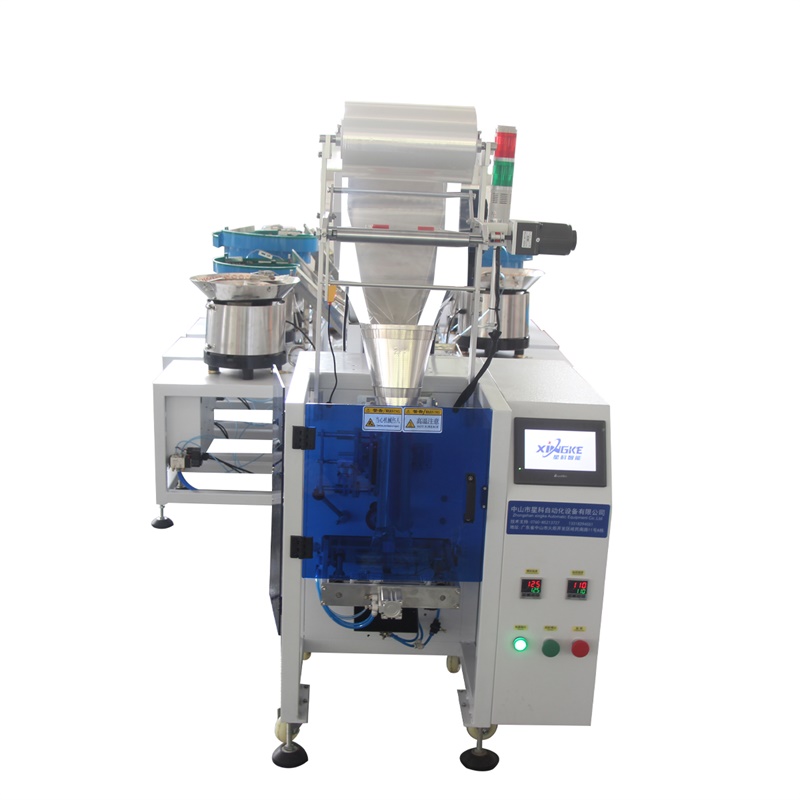

XK-B870Z（Multi-disc climbing type packing machine）

1) Technical characteristics 1, Vibration plate automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2, Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3, The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check and reweigh, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1, this product is suitable for a variety of automatic counting material feeding mix or separate packaging, such as, screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product USES bucket climbing type turns feeding box, artificial material delivery to bin, automatically packaging products fill the bucket to molding machine, this product USES climbing way reduces the height of trailers, More than 10 vibration plate work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual feeding. 2. It is suitable for "OPP/CPP/ composite membrane" as sealing material.
