Nut Bolt Washer Screw hardware packaging Machine Counting Packaging Machine

Product Categories
Zhongshan Xingke Automation Equipment Co., Ltd.
Contact Now

Nut Bolt Washer Screw hardware packaging Machine Counting Packaging Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 210

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1100*1000*1550 MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Bag type : Back Sealing

Main Function : Forming Filling Sealing

Usage : Filling Packing Machine

Packing speed : 1-60 Bags/min

Packing material : CPP OPP

Feature : Easy Opperation

Bag length : 30-165mm

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Packaging Details : Packed in wooden cases

Port : guangzhou

Supply Ability : 20 Set/Sets per Month

Price : $5,120.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Nut Bolt Washer Screw hardware packaging Machine Counting Packaging Machine
Product Description
Nut Bolt Washer Screw hardware packaging Machine Counting Packaging Machine
Equipment model:
B862
Counting method:
fiber counting/stopping and discharging
Bag size:
width 40-140 within 200 length
Packing speed:
1-60 bags/min
Seal shape:
stripe, back seal/trilateral seal (normally back seal)
Voltage power:
220V/50Hz P≈0.6KW
Air source requirements:
0.4-0.8MPA
Bag mouth shape:
figure cutter tooth shape
Dimensions:
length 1300mm/width 1100mm/height 1800mm
Weight:
about 300KG
Nut Bolt Washer Screw hardware packaging Machine Counting Packaging Machine
1) Technical characteristics

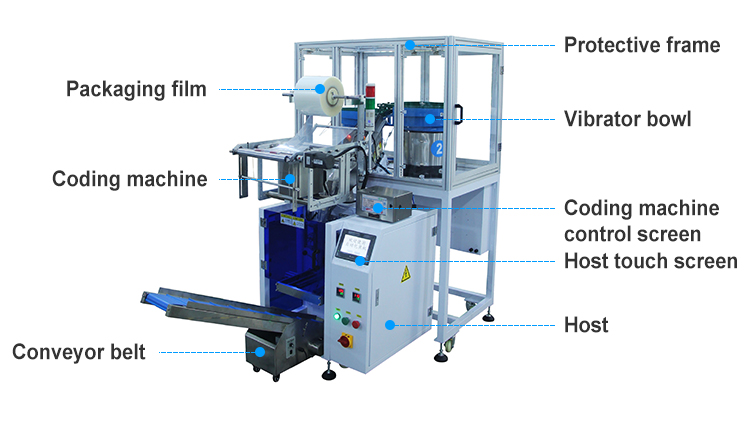

1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function,output count.
2.Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3.The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.
4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
2) Scope of application and functional features
1. 1.This product is applicable to automatic mixing under 2 kinds of materials or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product uses chain bucket turns box, vibrator bowl, automatic counting on materials to box, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space.
2. It is suitable for "OPP/CPP/ lamination film " as sealing material.
