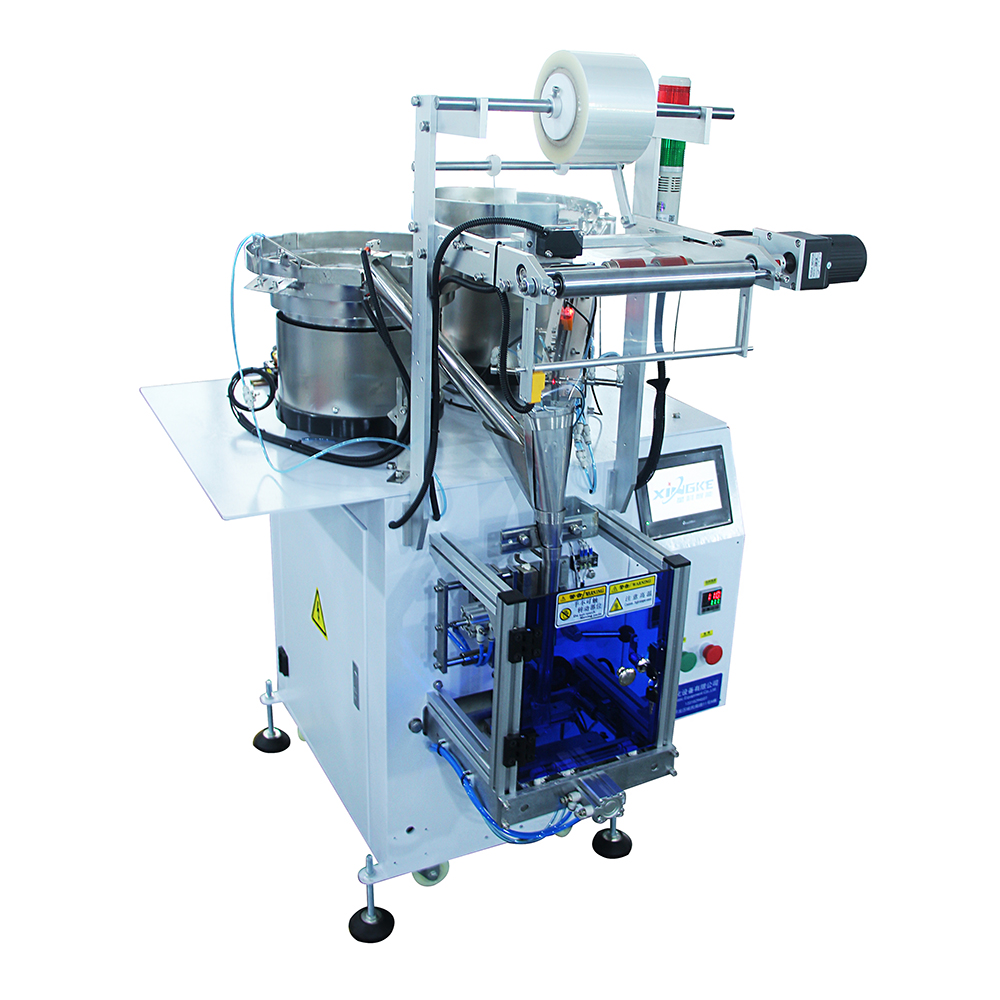

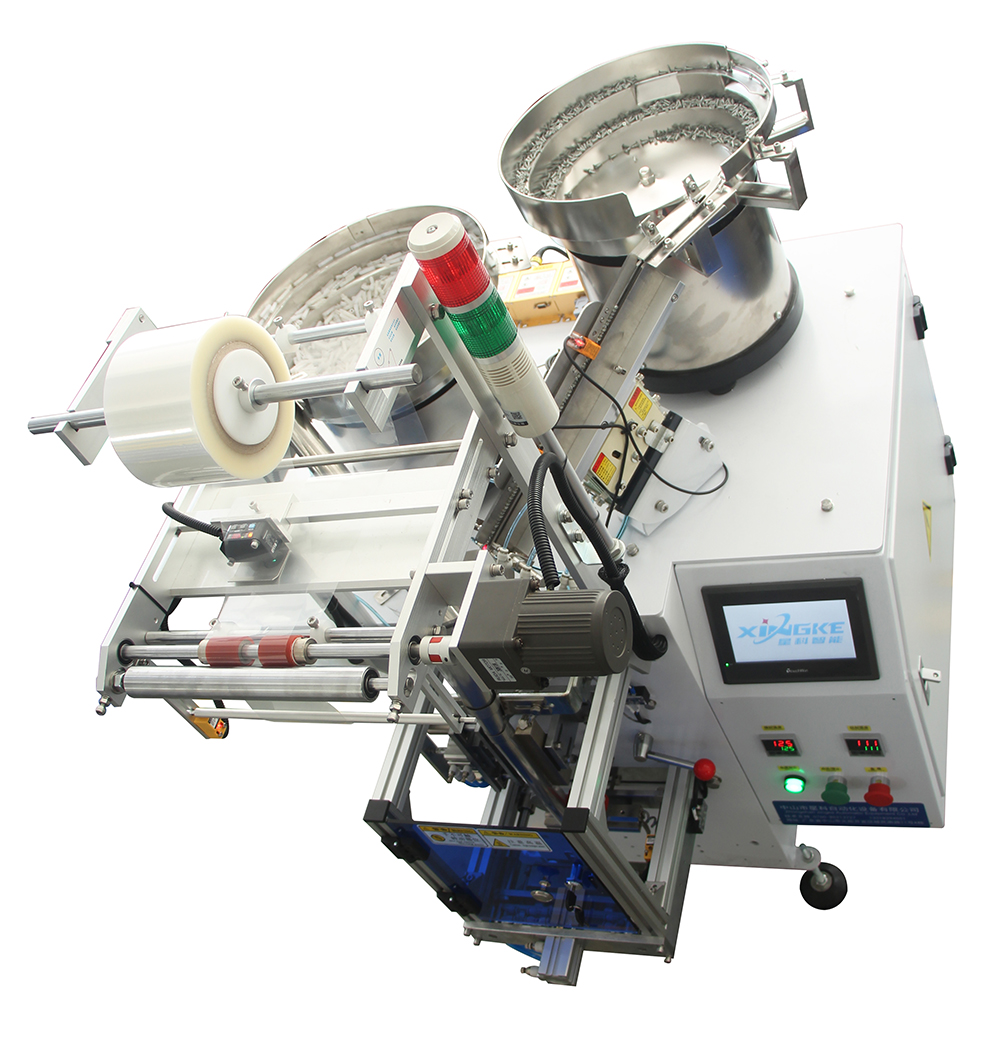

Multi-function Packaging Machine For Hardware Nail Bolt Screw High Speed Counting Machinery Screw Packing Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 180

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Machinery & Hardware, Textiles

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1100*1000*1550 MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pressure vessel, PLC, Other, Bearing, Engine, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Bag type : 3 Sides Seal

Usage : Filling Packing Machine

Main Function : Weighing Forming Filling Sealing

Packing speed : 1-100 Bags/min

Packing material : CPP OPP

Feature : Easy Opperation

Bag length : 30-165mm

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Packaging Details : Packed in wooden cases

Port : guangzhou

Supply Ability : 20 Set/Sets per Month

Price : $3,970.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Multi-function Packaging Machine For Hardware Nail Bolt Screw High Speed Counting Machinery Screw Packing Machine
Product Description
Multi-function Packaging Machine For Hardware Nail Bolt Screw High Speed Counting Machinery Screw Packing Machine
Equipment model:
XK-B862
Counting method:
optical fiber counting/blocking and putting
Bag size:
width 40-140 length less than 200 (conventional 140)
Packing speed:
1-60 bags/min
Sealing shape:
stripe, back seal/three side seal (usually back seal)
Voltage power:
220V/50HZ P≈ 0.6KW
Air supply:
0.4-0.8MPA
Bag mouth shape:
figure cutter tooth shape
Dimensions:
length 1100mm/ width 1000mm/ height 1550mm
Weight:
about 180KG
Multi-function Packaging Machine For Hardware Nail Bolt Screw High Speed Counting Machinery Screw Packing Machine
1) Technical characteristics

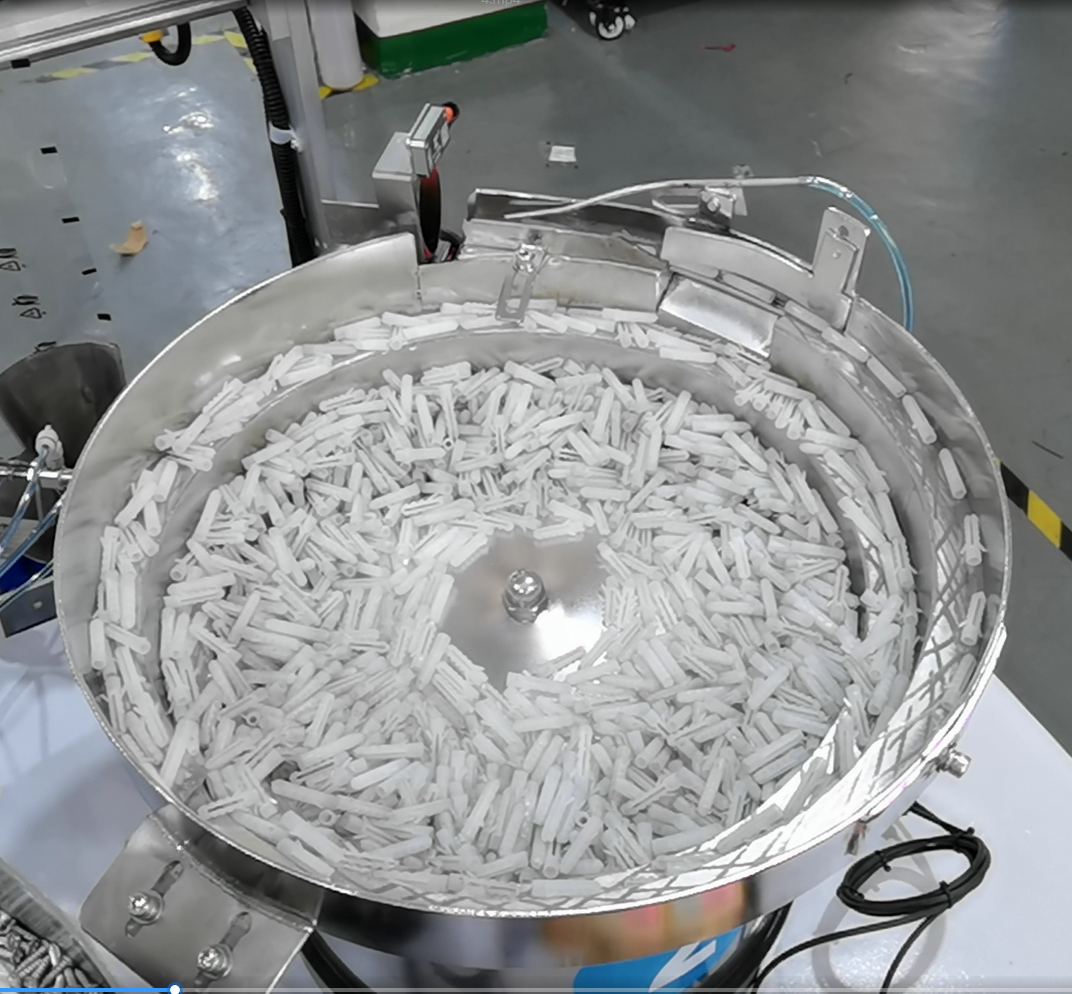

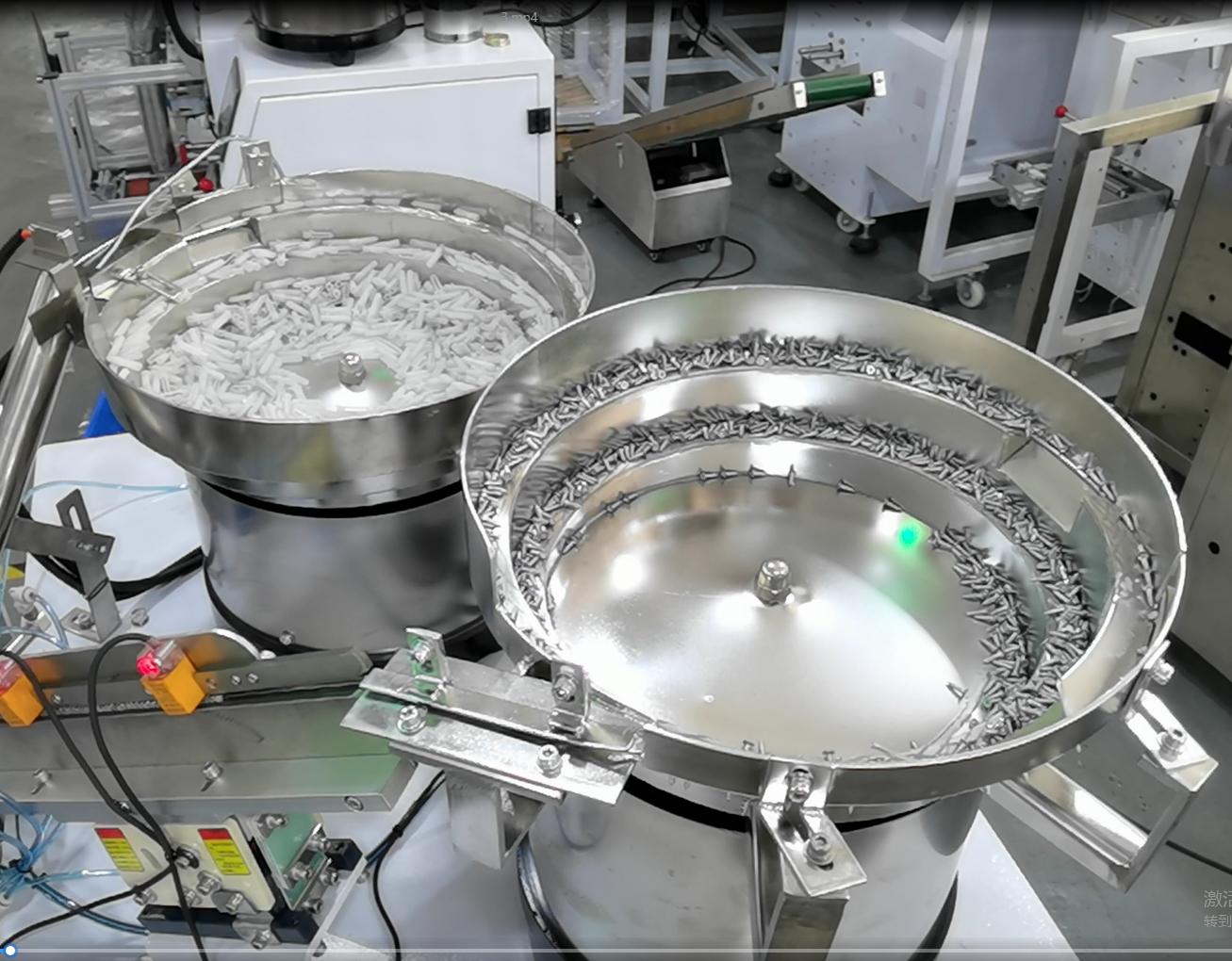

1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function,output count.
2.Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3.The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.

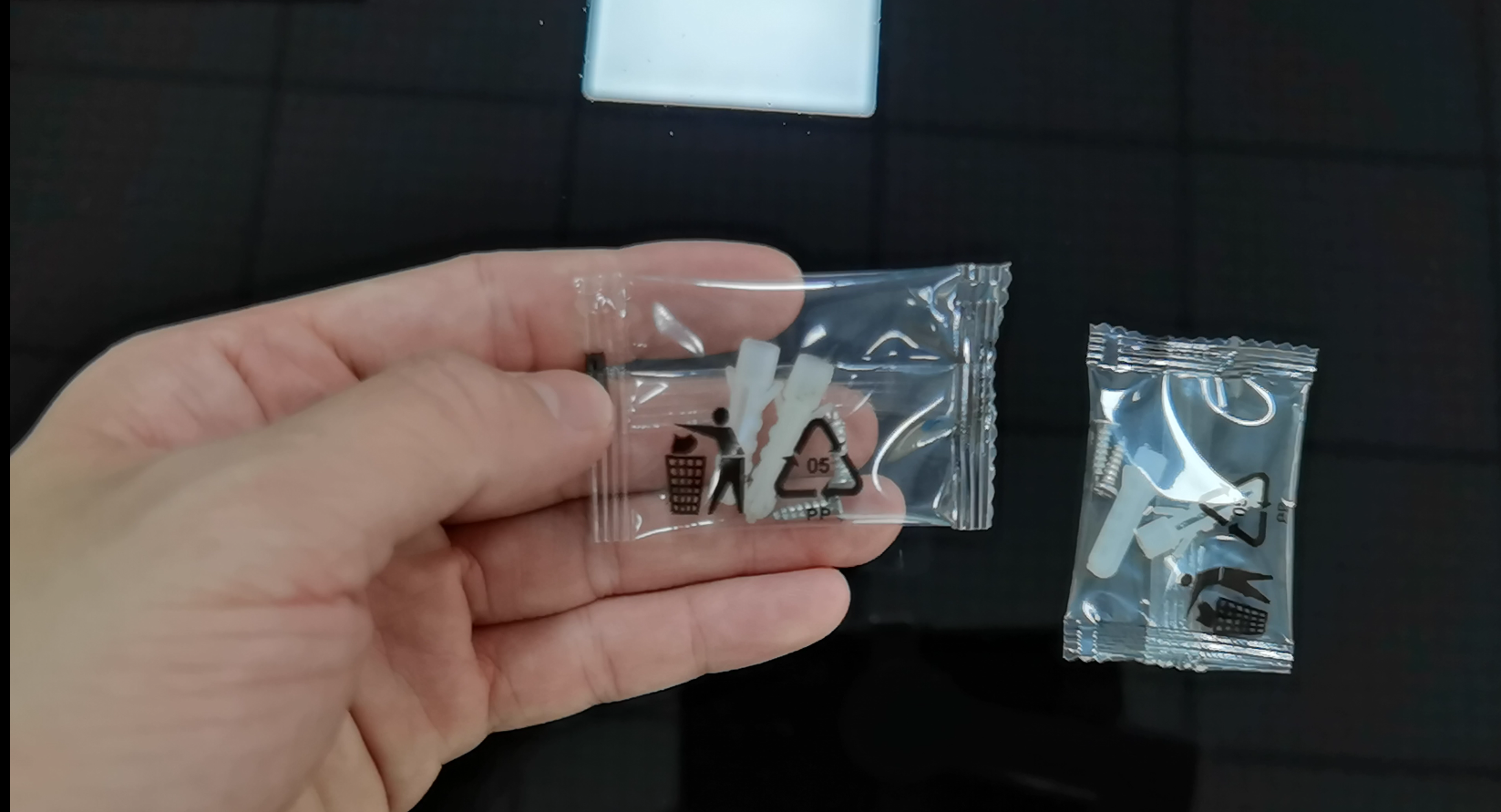

4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
2) Scope of application and functional features
1. 1.This product is applicable to automatic mixing under 2 kinds of materials or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product uses chain bucket turns box, vibrator bowl, automatic counting on materials to box, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space.
2. It is suitable for "OPP/CPP/ lamination film " as sealing material.
