Vibration Plate Automatic Button Nail Nut Bolt Screw Counting Packing Machine Other Parts Packaging Machine

Name: Vibration Plate Automatic Button Nail Nut Bolt Screw Counting Packing Machine Other Parts Packaging Machine
Brand: Xingke
Price: 10 USD

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 bags/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 350

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Stand-up Pouch, Bags, Film, Pouch

Packaging Material : Plastic, Paper, Metal, Glass, Wood

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : Xingke

Dimension(L*W*H) : 2350*1500*1550mm

Warranty : 1 Year

Key Selling Points : multifunctional

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC, Gear, Bearing, Other

Product name : Automatic Vertical Packing Machine

Bag mouth shape : figure cutter tooth shape

Air supply : 0.4-0.8MPA

Voltage power : 220V/50HZ

Sealing shape : stripe, back seal/three side seal (usually back seal)

Keyword : Packaging Machinery Equipment

Description : High Speed Horizontal Pillow Packaging Machine

Bag size : width 40-140 length less than 200 (conventional 140)

Counting method : optical fiber counting/blocking and putting

After-sales Service Provided : Video Call Technical Support

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 50 Set/Sets per Month

Price : $10,200.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model:	XK-B867T
Counting method:	optical fiber counting/blocking and putting
Bag size:	width 40-140 length less than 200 (conventional 140)
Packing speed:	1-60 bags/min

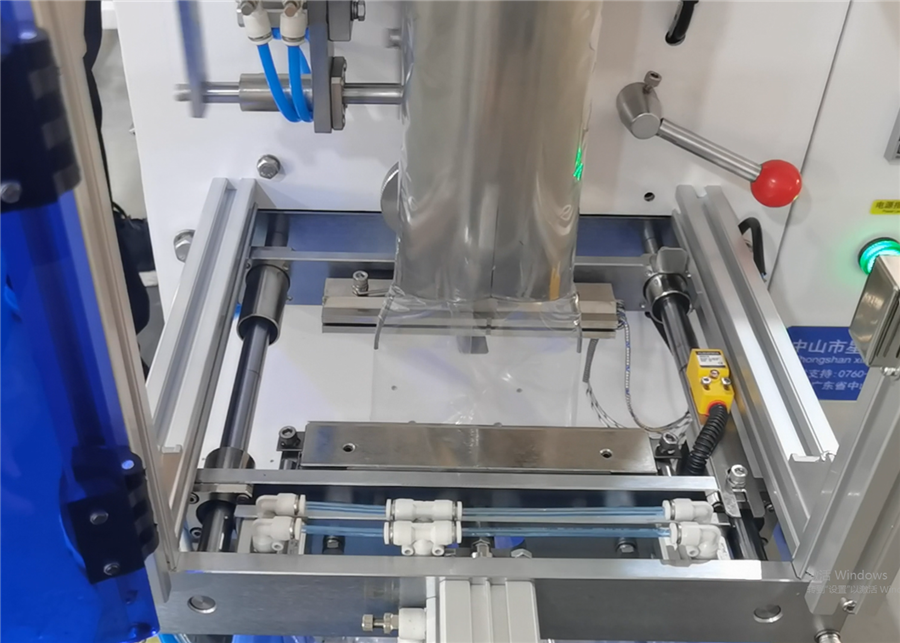

Sealing shape:	stripe, back seal/three side seal (usually back seal)
Voltage power:	220V/50HZ P≈1.5KW
Air supply:	0.4-0.8MPA
Bag mouth shape:	figure cutter tooth shape

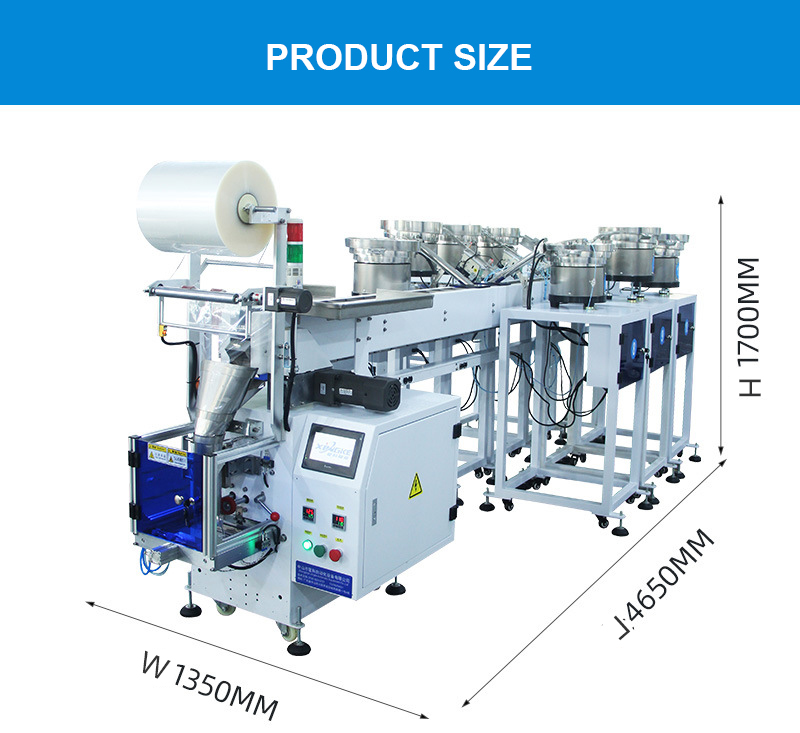

Dimensions:	length 2350mm/ width 1500mm/ height 1550mm
Weight:	about 350KG

Vibration Plate Automatic Button Nail Nut Bolt Screw Counting Packing Machine Other Parts Packaging Machine

XK-B867T（A variety of screw nut rubber granule mixed packaging machine）

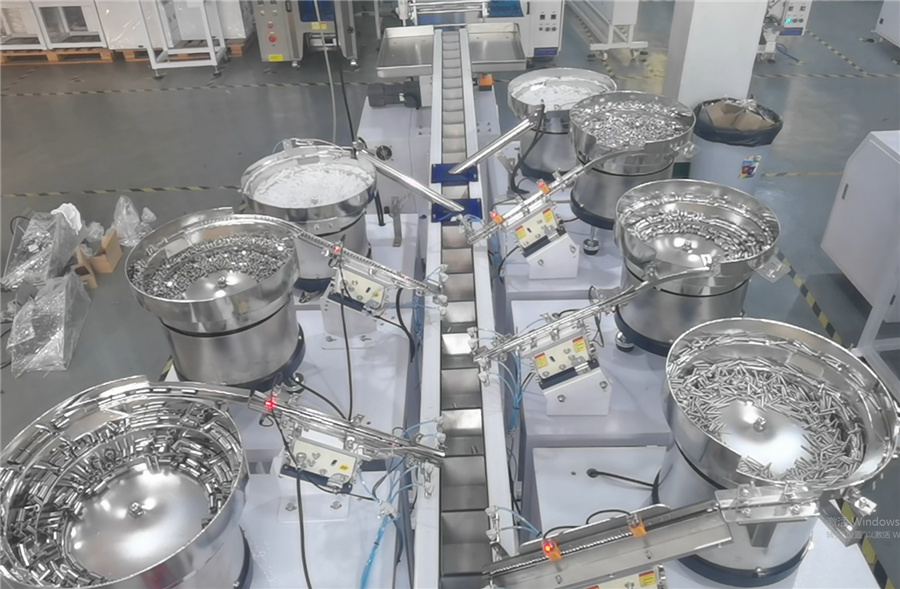

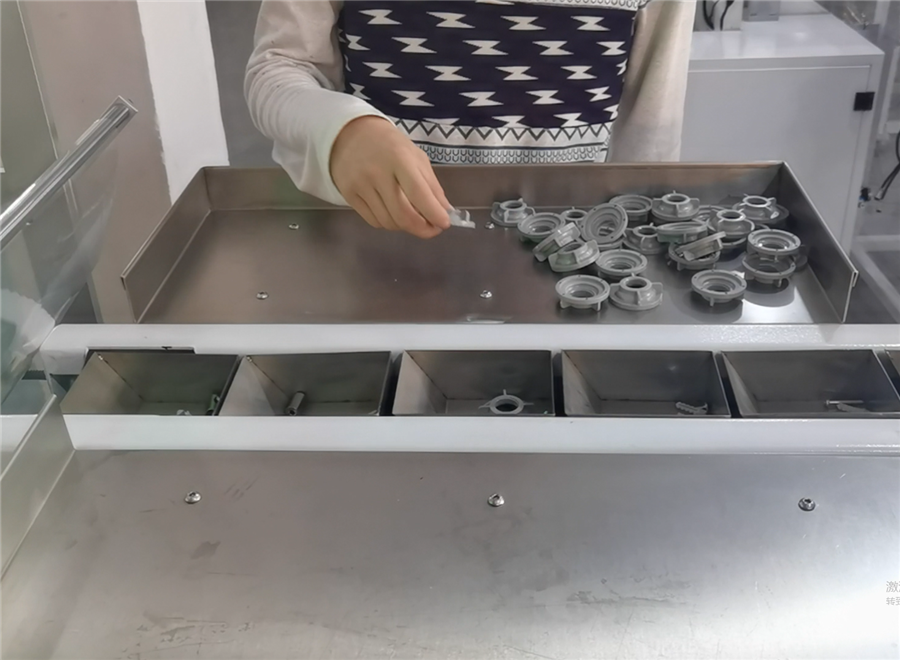

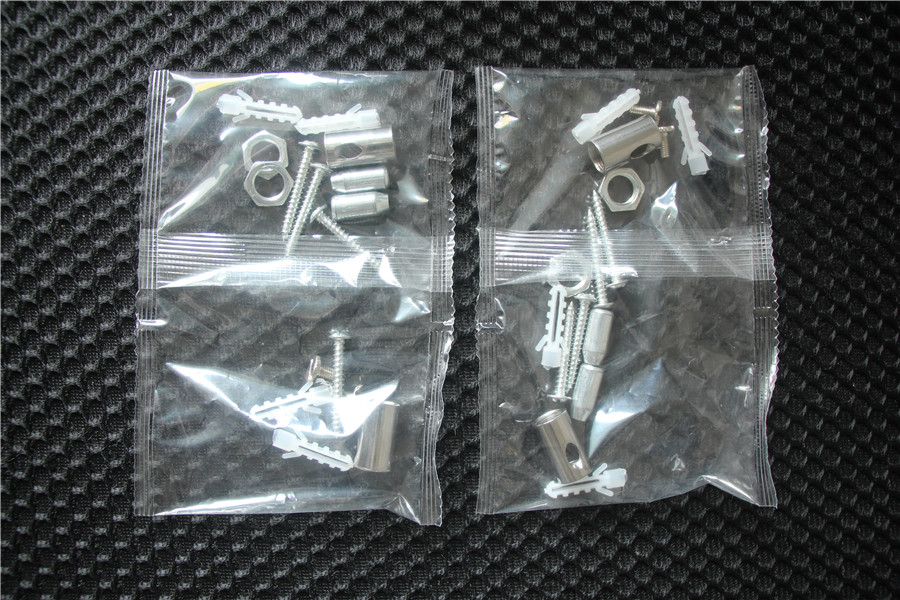

1) Technical characteristics 1. Automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1.This product is suitable for automatic mixing or individual packaging of the following 7 materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment. 2.It is suitable for "OPP/CPP/ lamination film" as sealing material.
