Automatic Bolts Nuts Nail Fastener Screw Counting Packing Machine With Vibrator Bowl Feeder

Name: Automatic Bolts Nuts Nail Fastener Screw Counting Packing Machine With Vibrator Bowl Feeder
Brand: Xingke
Price: 17 USD

Buy cheap Automatic Bolts Nuts Nail Fastener Screw Counting Packing Machine With Vibrator Bowl Feeder product

Type : Multi-Function Packaging Machine

Production Capacity : 5-15 packages/minute

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Comp

Weight (KG) : 2060

Showroom Location : None

Condition : New

Function : FILLING, Sealing, counting

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Film, Pouch

Packaging Material : Plastic

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : Xingke

Dimension(L*W*H) : 7940*4450*1900mm

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC, Gear, Bearing, Other

Item : ten drum film packaging machine

After-sales Service Provided : Video Technical Support

Counting mode : optical fiber counting/blocking and placing

Bag making size : width 100-400, length under 450

Sealing shape : upper and lower cylinder membrane sealing

Usage : Filling Packing Machine

Pocket mouth shape : pattern knife tooth type

Advantage : Easy Operation High Efficiency

Description : Screw Nut Packing Machine

Feature : Automatic Production Line

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 50 Set/Sets per Month

Price : $17,500.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Device model:	B8610T
Bag size:	width 100-400mm length within 450mm
Packing speed:	5-15 packs/min
Voltage power:	380V/50Hz P≈4.0KW
Dimensions:	length 7940mm/ width 4450mm/ height 1900mm
weight:	2060kg
Sealing shape:	upper and lower cylinder film sealing

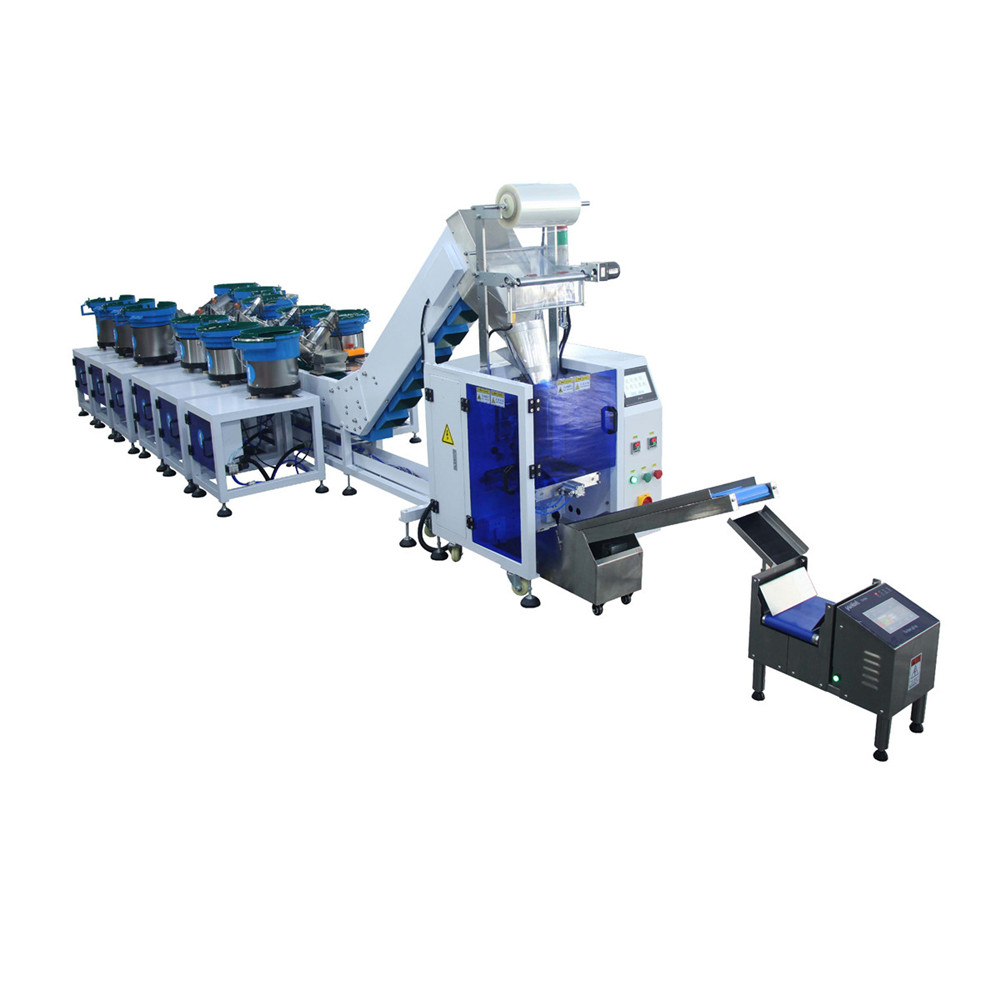

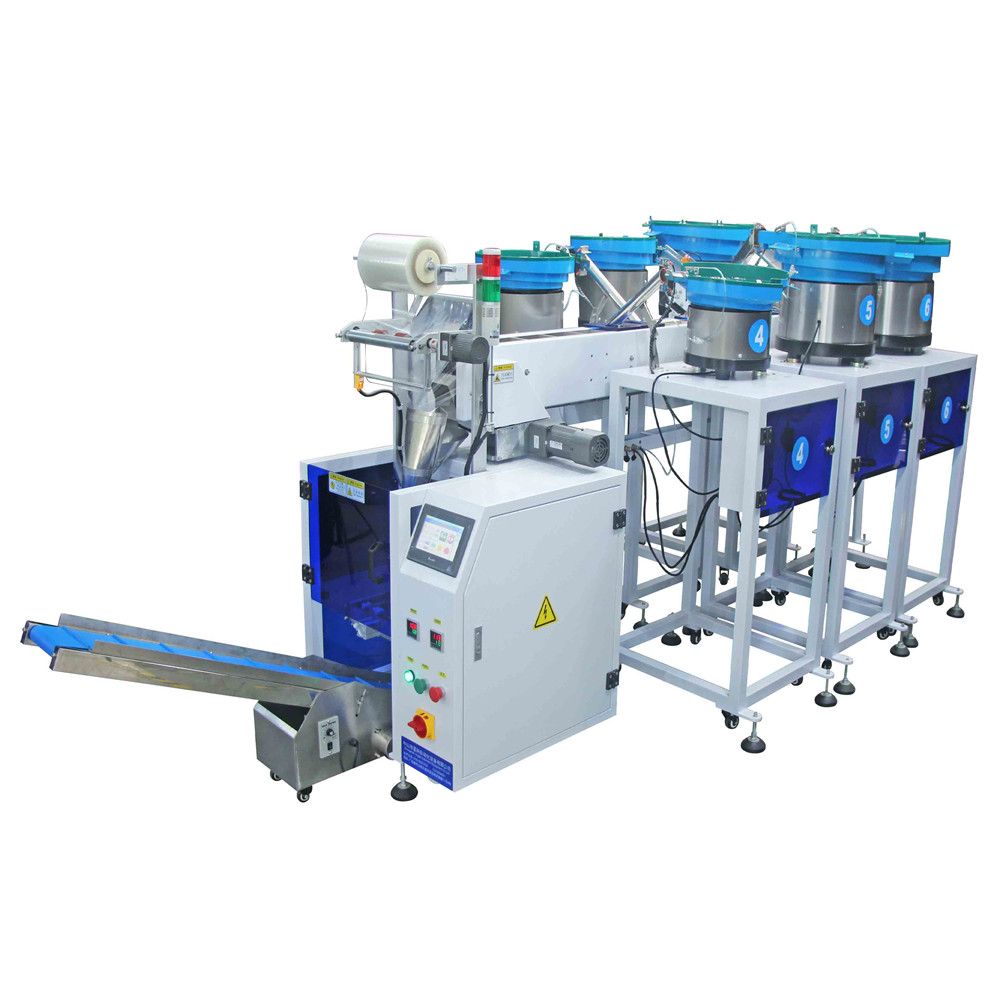

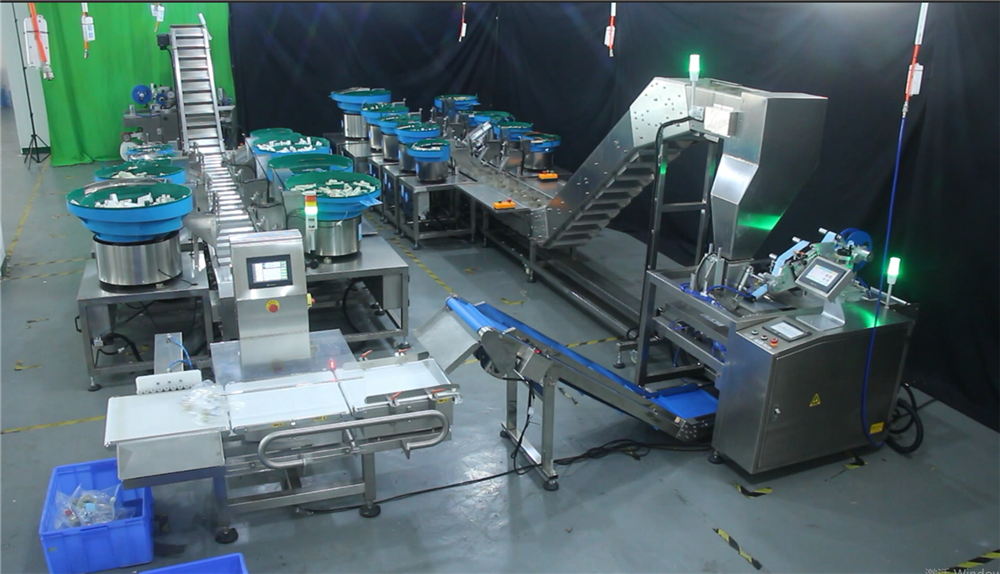

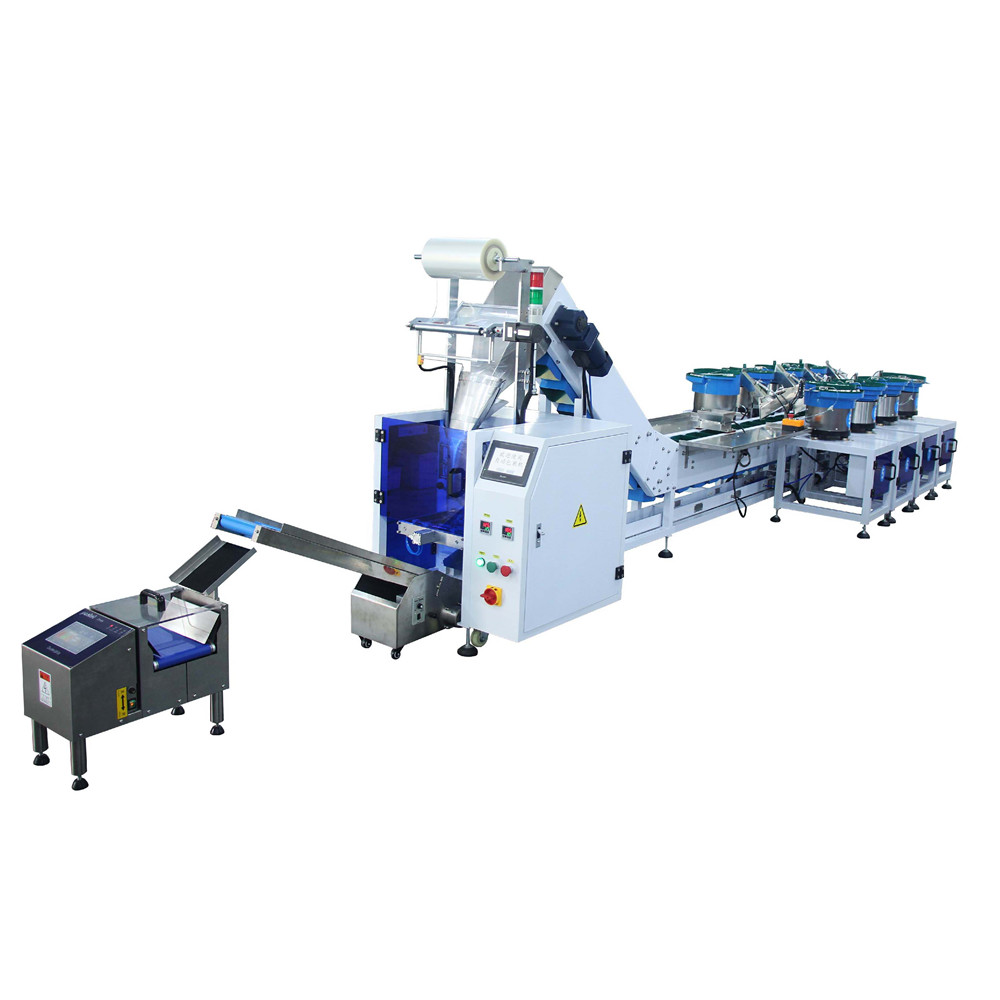

Automatic Bolts Nuts Nail Fastener Screw Counting Packing Machine With Vibrator Bowl Feeder

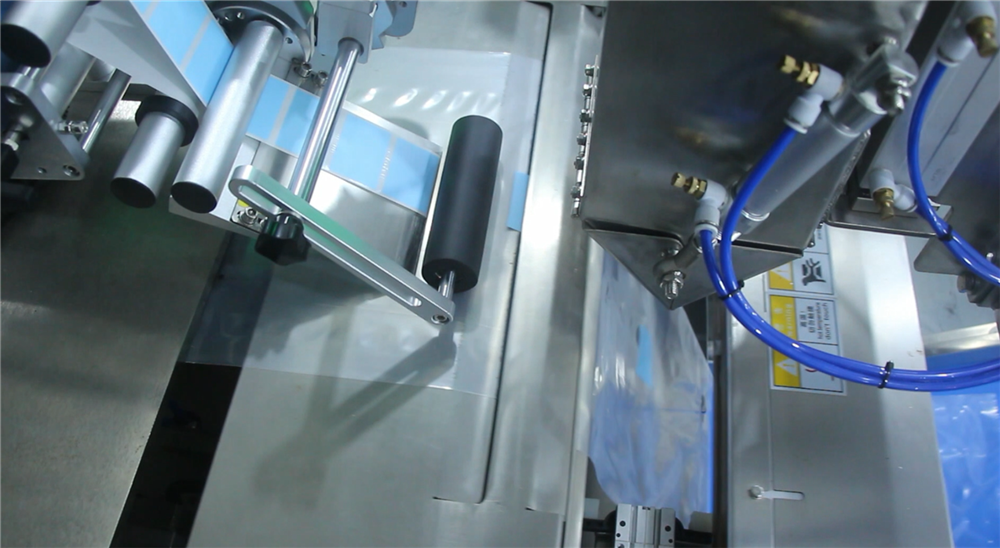

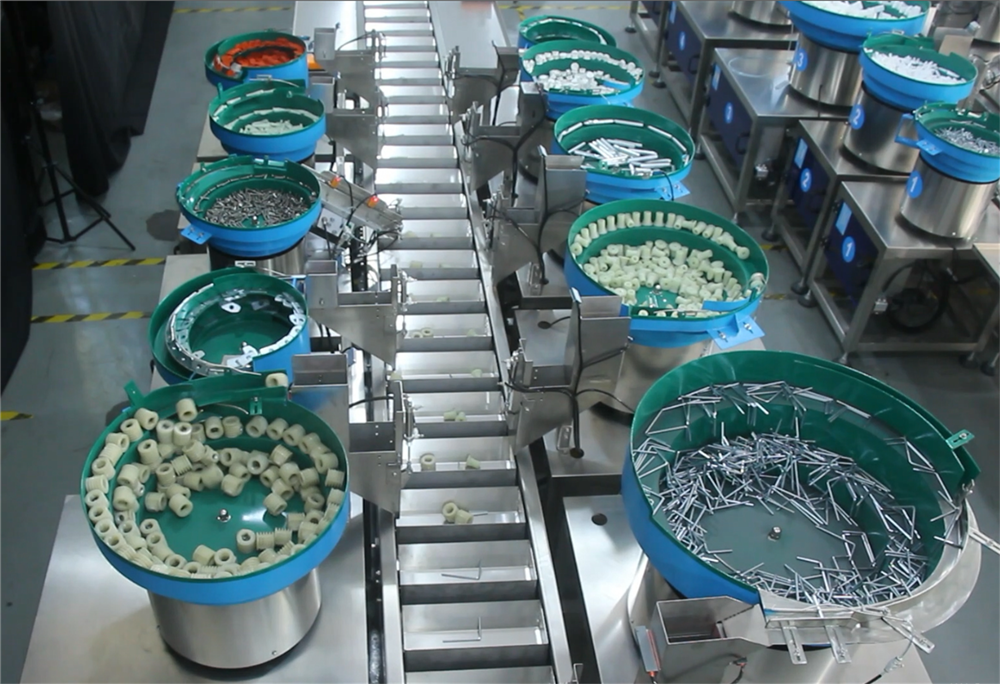

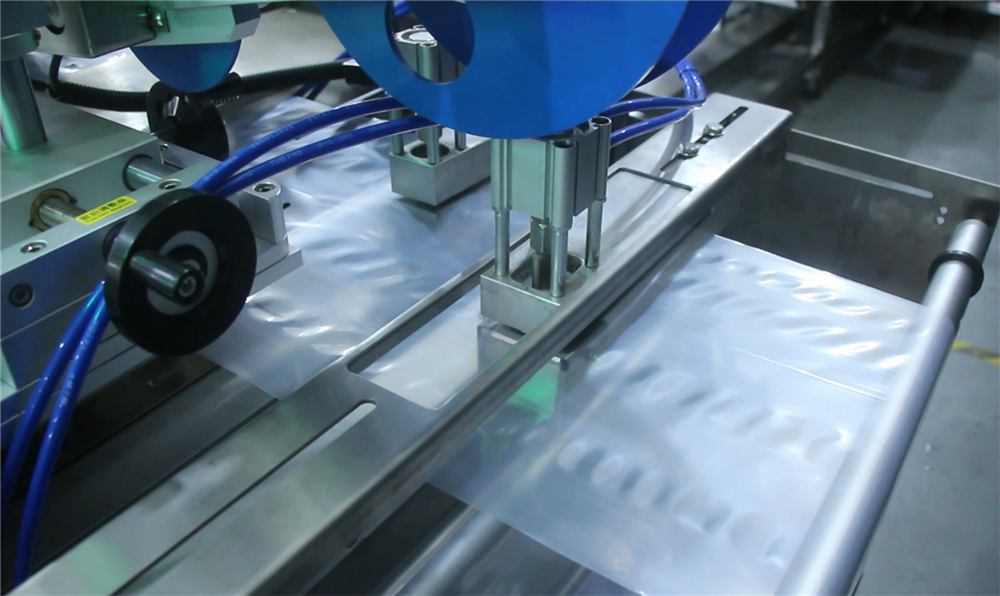

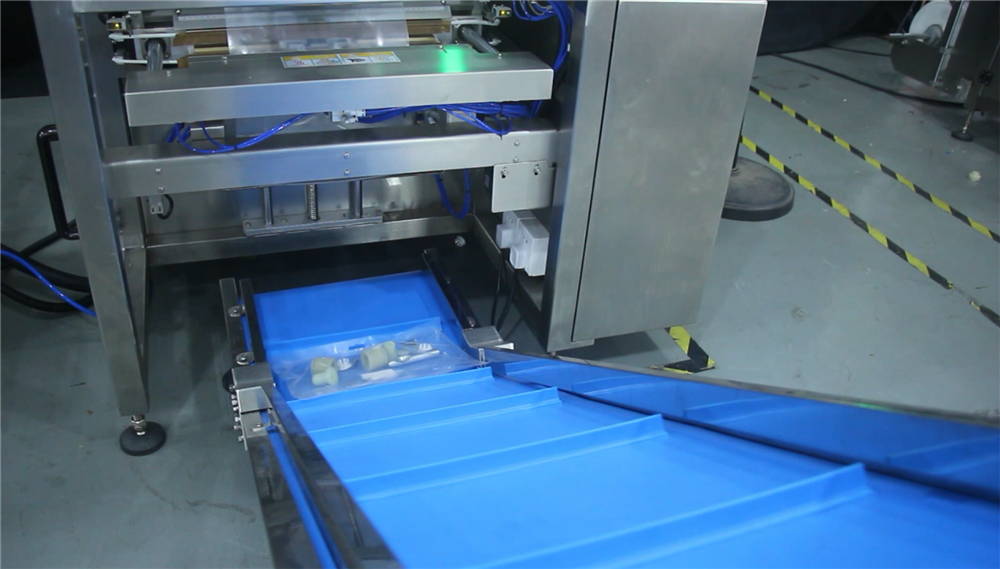

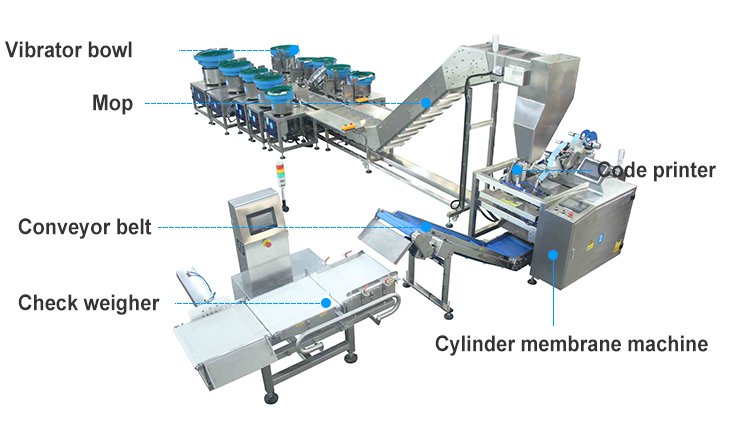

1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The bag is made of cylindrical membrane, without the need of a molding machine. 3. Fault self diagnosis and alarm display. 4. Man machine interface operation, simple and convenient parameter setting. 5. Use heating wire to control temperature and seal, and use pneumatic suction bag to pull the bag. 6. The transmission system is simple and clear, reliable, and easy to maintain. 7. The bag width can be changed at any time, just replace the cylinder membrane. 8. Object sensing to prevent empty bags. 9. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 10. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed.

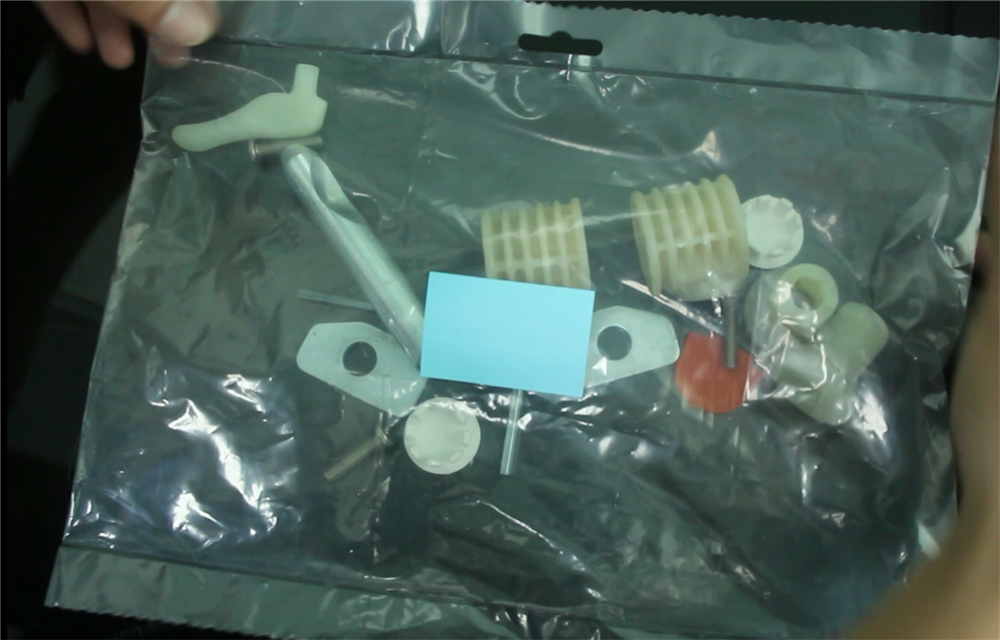

2) Scope of application and functional characteristics 1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. The chain bucket climbing type is used to drive the material box to rotate, and the materials are put into the material box manually. The climbing method is used to reduce the height of the trailer. More than 10 vibrating disk stations can be added behind the trailer, which can continue to mix and automatically package materials of more specifications, The free space can also be used for manual feeding. This product is applicable to the products with large quantity and large material, which require PE material as the bag making material, and the upper and lower cylinder membrane packaging. For example, rubber particles, injection molded parts, springs, capacitors, plastic standard parts, water pipes, power cables, etc. The bag making size of this product is large, and the opening is large, so there is no need for the shaper to cut material, and it can be used for filling and packaging of products with large size and large quantity.

2. It is applicable to "PE cylinder membrane" as sealing material.

XK-B8614T 14 vibrating disc

XK-B866T 6 vibrating disc

XK-B8612T 12 vibrating disc

XK-B8611T 11 vibrating disc

XK-B868T 8 vibrating disc

XK-B862T 2 vibrating disc

We have a variety of machine patent certificates and export certificates, welcome to contact！！
