Semi Automatic Plastic Film Bag Hardware Screw Nut Counting Sealing Compact Packaging Machine

Name: Semi Automatic Plastic Film Bag Hardware Screw Nut Counting Sealing Compact Packaging Machine
Brand: XingKe
Price: 8 USD

Buy cheap Semi Automatic Plastic Film Bag Hardware Screw Nut Counting Sealing Compact Packaging Machine product

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 350

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Film, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1350*1500*1550MM

Warranty : 1 years

Key Selling Points : High Productivity

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Multi-Function Packaging Machine

Counting mode : optical fiber counting/blocking and putting

Bag size : width 40-140 length less than 200 (conventional 140)

Air supply : 0.4-0.8MPA

Sealing shape : stripe, back seal/three side seal (usually back seal)

Voltage power : 220V/50HZ

Bag's both sides : figure cutter tooth shape

Bag type : 3 Sides Seal

Main Function : Bagging Filling Sealing

Feature : Easy Opperation

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $8,200.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Width of the bag	40-140mm
The length of the bag	Less than 200
Air supply	0.4-0.8MPA
Can increase the	hoist
Can increase the	Check weight said
Can increase the	Code printer
Can increase the	The cursor

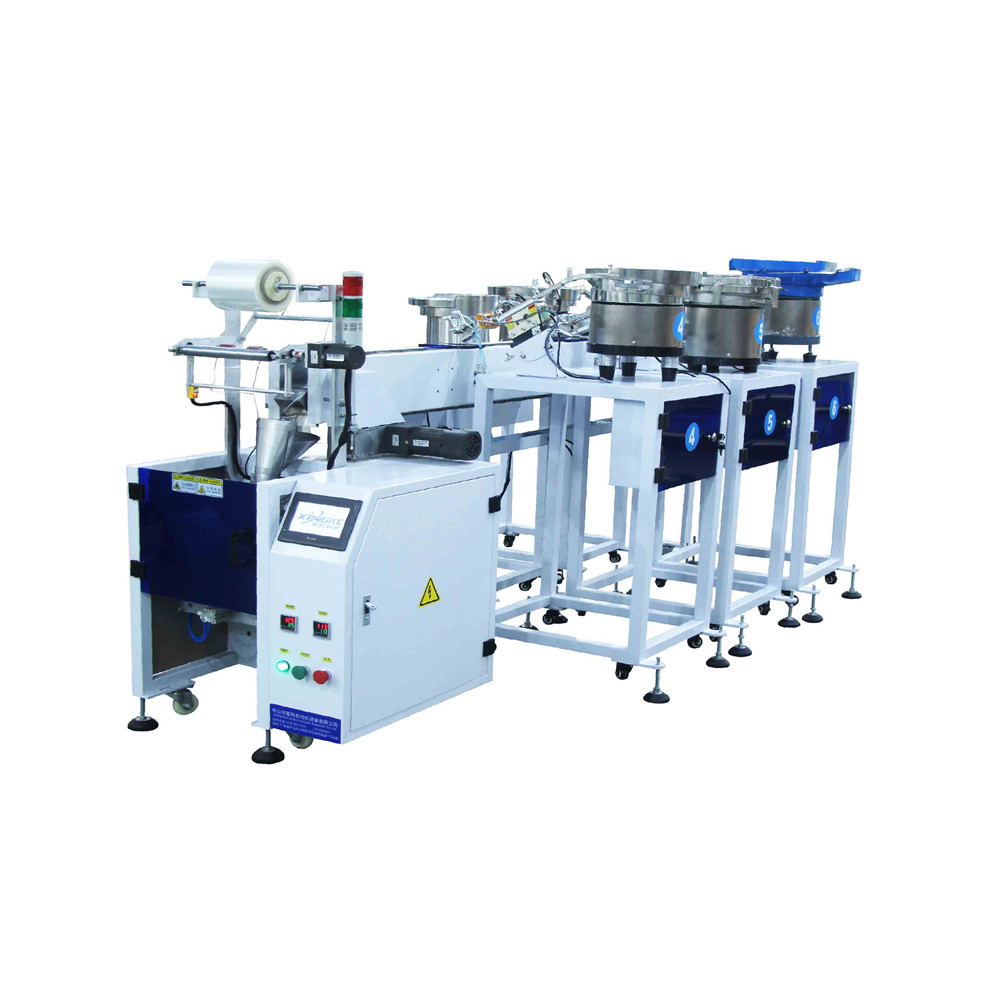

Semi Automatic Plastic Film Bag Hardware Screw Nut Counting Sealing Compact Packaging Machine

XK-B865T（5 disc chain bucket packing machine）

1) Technical characteristics 1, Vibration plate automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2, Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3, The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check and reweigh, labeling machine, hoist and other expansion equipment.

2) Scope of application and functional features 1, this product is applicable to automatic mixing under 6 kinds of materials or separate packaging, such as, screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product USES chain bucket turns feeding box, vibration plate, automatic counting on raw materials to bin, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space.

2. It is suitable for "OPP/CPP/ composite membrane" as sealing material.

Equipment model: XK-B865T

Counting mode: optical fiber counting/stopping and discharging Bag size: width 40-140 length less than 200 (conventional 140)

Packing speed: 1-60 packs/min Sealing shape: stripe, back seal/three side seal (usually back seal)

Voltage power: 220V/50Hz P≈ 2.2kW Air source requirement: 0.4-0.8Mpa

Bag mouth shape: pattern knife tooth shape Dimensions: length 2850mm/ width 1500mm/ height 1550mm

Weight: about 400KG
