Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine

Product Categories
Zhongshan Xingke Automation Equipment Co., Ltd.
Contact Now

Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 100

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Commodity, Medical, Machinery & Hardware

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50HZ

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1100*750*15500MM

Warranty : 1 years

Key Selling Points : Multifunctional

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Bag type : stripe, back seal/three side seal

Bag's both sides : figure cutter tooth shape

Main Function : Weighing Forming Filling Sealing

Counting method : Counting method

Packing material : CPP OPP

Feature : Easy Opperation

Air supply : 0.4-0.8MPA

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Packaging Details : Packed in wooden cases

Port : guangzhou

Supply Ability : 20 Set/Sets per Month

Price : $5,200.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Equipment model
XK-B860
Counting method
manual placement
Bag size
width 40-140 length 200 (conventional 140)
Packing speed
1-60 bags/min
Sealing shape
 stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
220V/50HZ P≈0.6KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
length 1100mm/ width 750mm/ high 1550mm
Weight
about 100KG
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine

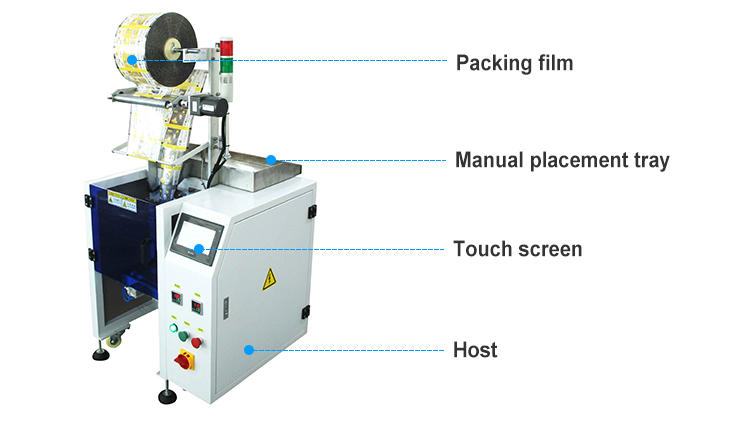

Xingke XK-B860 Automatic Manual Placement Packaging Machine

1) Technical characteristics 1. Automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs 3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1. This product is applicable to the product shape is long and irregular, large aspect ratio, product, or on the surface requirement high after electroplating, spray paint, paint and other products, such as, after plating processing plastic products, toys, bolt, screw driver, cable, etc., using artificial delivery material, belt transmission material to molding machine, automatic filling packaging. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Company Profile
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Certifications
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Exhibition
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Buyer feedback
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Packing & Delivery
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
FAQ
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
Fully Automatic Child Toy Bricks Plastic Parts Building Bricks Counting Packaging Packing Machine
