Intelligent automatic 5-15 bags/min Rubber particles cylinder film packaging machine for injection molded parts springs

Name: Intelligent automatic 515 bagsmin Rubber particles cylinder film packaging machine for injection molded parts springs
Brand: xingke
Price: 1 USD

Buy cheap Intelligent automatic 5-15 bags/min Rubber particles cylinder film packaging machine for injection molded parts springs product

Type : Multi-Function Packaging Machine

Production Capacity : 5-15 bags / min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 300

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Film, Pouch

Packaging Material : Plastic, Paper, Metal, Glass, Wood

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : xingke

Dimension(L*W*H) : length 1200 mm/ width 1000mm/ height 950 mm

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Gear, Engine

Product name : Cylinder film packing machine

Counting method : manual placement / matched with the vibratorbowl

Bag size : 100-400 wide, less than 450 in length

Packing speed : 5-15 bags / min

Sealing : upper and lower cylinder film sealing

Voltage power : 220V/50 HZ

Weight : About 300KG

Bag mouth shape : figure cutter tooth shape

Dimensions : length 1200 mm/ width 1000mm/ height 950 mm

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $1,680.00/sets 1-4 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Device model: XK-TM400. Counting method: manually placed / matched with the vibration belt. Bag size: 100-400 wide, less than 450 in length. Packing speed: 5-15 packs / min. Sealing form: upper and lower cylinder film sealing. Voltage power: 220V/50 Hz P ≈ 2.5KW. Weight: about 300 kilograms. Bag mouth shape: pattern cutter tooth type. Form factor: length 1200 mm/ wide 1000m/ height 950 mm

Counting method	manual placement / matching vibrating plate
Bag size	100-400 wide and 450 in length
Packing speed	5-15 packs / min
Sealing shape	upper and lower cylinder film sealing
voltage power	220V/50 Hz P ≈ 2.5kW
Bag mouth shape	pattern cutter tooth type

Intelligent automatic 5-15 bags/min Rubber particles cylinder film packaging machine for injection molded parts springs

XK-TM400（Cylinder film packing machine）

1) Technical characteristics. 1. The bag is made of cylinder film, and there is no need for shaping. 2. Fault self-diagnosis, and alarm prompt. 3. Man-machine interface operation, parameter setting is simple, convenient and fast. 4. Use heating wire temperature control seal, pneumatic suction bag pull bag. 5. The transmission system is simple and clear. The working property is reliable and the maintenance is convenient. 6. The width of the bag can be changed at any time, only need to change the cylinder film. 7. Goods sense to prevent empty bags.

2) scope of application and functional features. 1. This product is suitable for products with large quantity and large materials, and requires bag-making material PE material, upper and lower sealing cylinder film packaging. For example, rubber particles, injection molded parts, springs, capacitors, plastic standard parts, water pipes, power cords and so on. The bag-making size of this product is larger, the opening is larger, and there is no need for shaper blanking, so it can be used for filling and packaging of products with larger size and larger quantity. 2. It is suitable for "PE tube film" as sealing material.

Company Profile

Buyer feedback

Exhibition

Certifications

FAQ

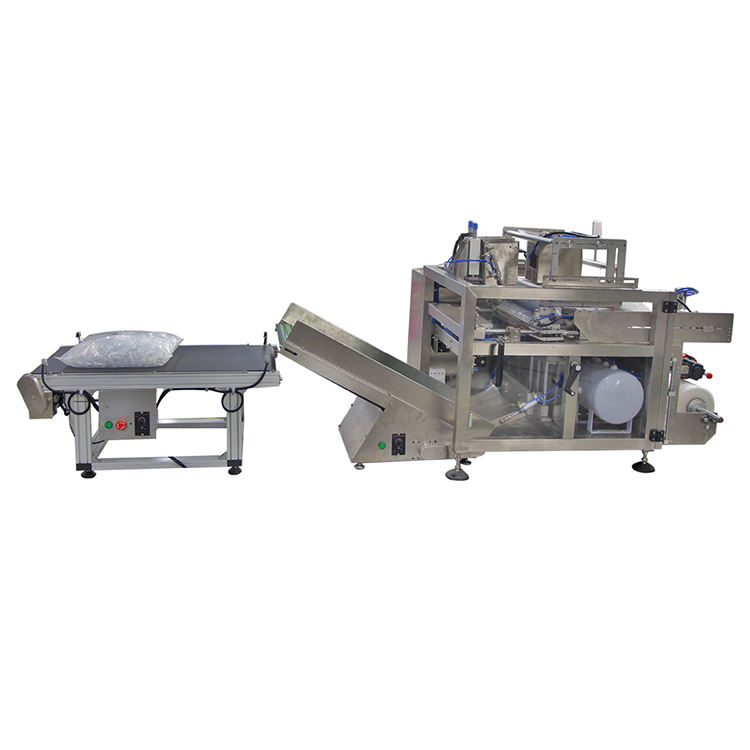

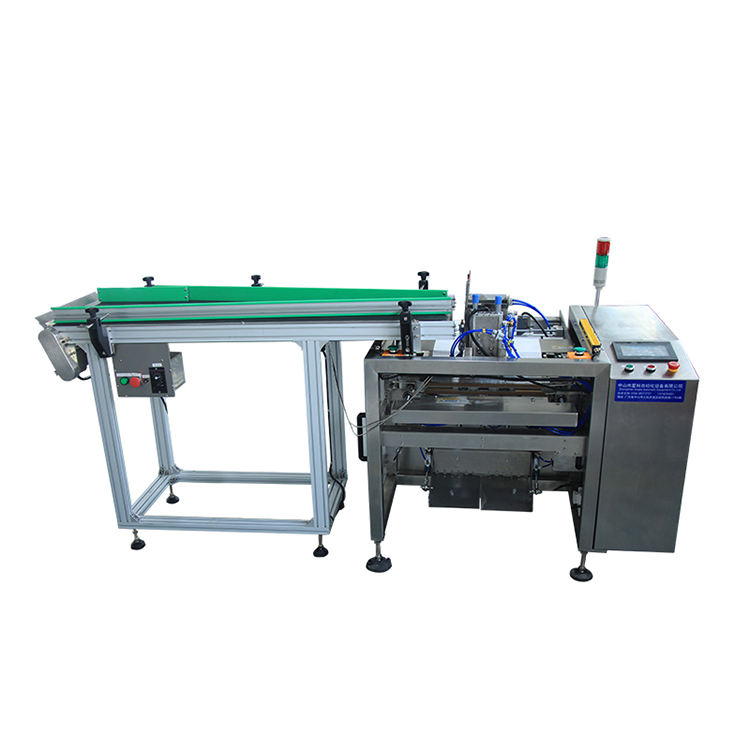

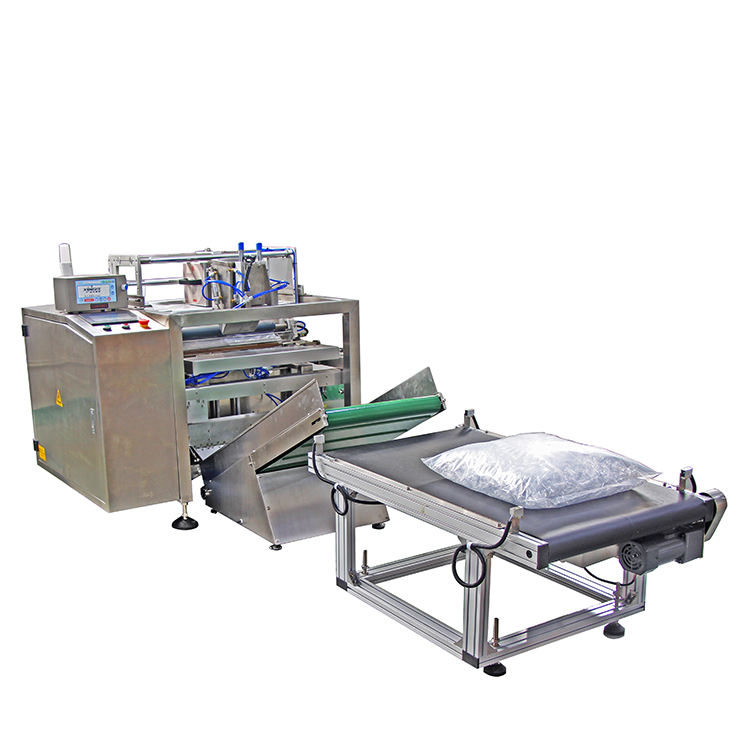

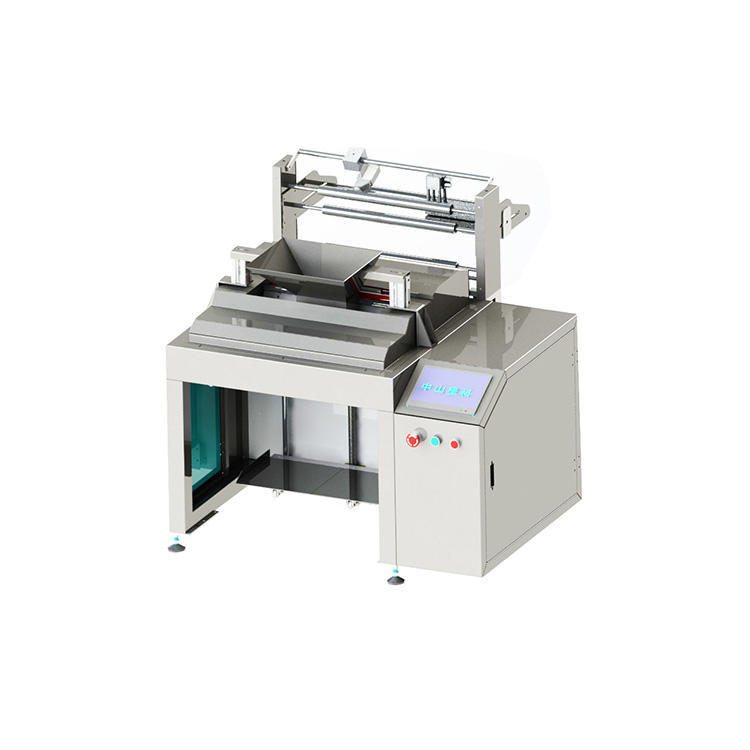

Intelligent automatic 5-15 bags/min Rubber particles cylinder film packaging machine for injection molded parts springs Images
