Easy to Operate Automatic Counting Bagging Plastic Film Bolts Screw Packaging Machine

Product Categories
Zhongshan Xingke Automation Equipment Co., Ltd.
Contact Now

Easy to Operate Automatic Counting Bagging Plastic Film Bolts Screw Packaging Machine

Type : Multi-Function Packaging Machine

Production Capacity : 1-60bag/min

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Weight (KG) : 2452

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting

Application : Commodity, Machinery & Hardware

Packaging Type : Stand-up Pouch, Bags, Film, Pouch

Packaging Material : Plastic, Paper

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XINGKE

Dimension(L*W*H) : 10600mm*2100mm*1900mm

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Pump, PLC, Other, Bearing, Engine

Name : XK-B8616T

Counting mode : optical fiber counting/blocking material discharge

Bag size : width 40-140 length less than 200 (conventional 140)

Packing speed : 1-60 bags/min

Seal shape : stripe, back seal/three side seal (conventional back seal)

Voltage power : 220V/50Hz P=3KW

Air source requirements : 0.4-0.8Mpa

Pocket shape : pattern cutter tooth type

Dimensions : 10600mm*2100mm*1900mm

Weight : about 2452KG

Packaging Details : Packed in wooden cases

Port : GUANGZHOU SHENZHEN

Supply Ability : 50 Set/Sets per Month

Price : $24,400.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description
Easy to Operate Automatic Counting Bagging Plastic Film Bolts Screw Packaging Machine
Name
XK-B8616T
Counting method
optical fiber counting/blocking and putting
Bag size
width 40-140 length less than 200 (usually 140)
Packing speed
1-60 bags/min
Sealing shape
stripe, back seal/three side seal (usually back seal)
Voltage power
220V/50HZ P≈3KW
Air supply
0.4-0.8MPA
Bag's both sides
figure cutter tooth shape
Dimensions
10600MM*2100MM*1900MM
Weight
2452kg
Easy to Operate Automatic Counting Bagging Plastic Film Bolts Screw Packaging Machine

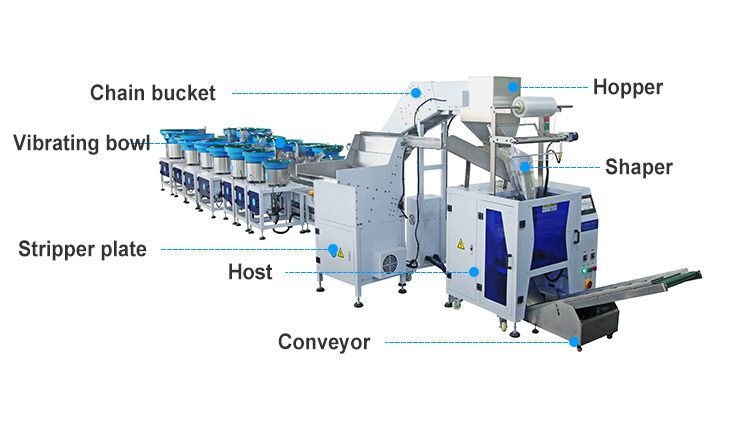

(1)Technical feature 1.Vibration plate automatic arrangement of materials, automatic counting, filling and packaging, sealing function, output counting. 2.Adopt intelligent temperature control system, stable temperature control, adjustable temperature according to needs. 3.The length of the packing bag can be adjusted, the total number of packaging can be adjusted, and the automatic alarm is reached. 4.After packing, the bag type is unified, regular, beautiful and firm. It can also be equipped with coding, inspection and re-weighing, labeling machine, hoisting machine and other expansion equipment. (2)Scope of application and functional features 1.this product is applicable to automatic mixing many kinds of materials or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc., this product uses chain bucket turns feeding box, vibration plate, automatic counting on raw materials to bin, the bucket will to molding machine automatic packaging materials for the products,and reduce the height of the chain bucket by climbing, can be increase more than 16 vibrating bowl, also can use artificial into other materials mixed packing equipment free space. 2.It is suitable for "OPP/CPP/ composite membrane" as sealing material.
