Automatic Screw Spare Part Counting Packaging Machine With Two Vibration Bowl Conveyor Hardware Packing Machine Feeder

Name: Automatic Screw Spare Part Counting Packaging Machine With Two Vibration Bowl Conveyor Hardware Packing Machine Feeder
Brand: XingKe
Price: 4 USD

Buy cheap Automatic Screw Spare Part Counting Packaging Machine With Two Vibration Bowl Conveyor Hardware Packing Machine Feeder product

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 300

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Stand-up Pouch, Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50Hz

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1850*1250*1650MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Bag type : stripe, back seal/trilateral seal

Counting method : fiber counting/stopping and discharging

Bag mouth shape : pattern knife tooth type

Bag size : width 40-140 within 200 length

Packing material : CPP OPP

Feature : Easy Opperation

Air source requirements : 0.4-0.8MPA

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 20 Set/Sets per Month

Price : $4,120.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

XK-B862P(Automatic Counting Hardware Furniture Fastener Fitting Screws Packing Label Tag Filling Packaging machine )

Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting machine, labeling machine, hoist and other expansion equipment.

Scope of application and features 1. This product is suitable for products with long products, many types, and various materials that cooperate with each other or are packaged separately, such as long-shaped products such as door latches, long screws, long cylindrical pins, square long keys, round bars, etc. This product uses belts instead of chain hoppers to feed, which avoids the situation that long strips of materials get stuck in the former. 2. It is suitable for "OPP/CPP/composite film"

Equipment model	XK-B862P
Counting method	fiber counting/stopping and discharging
Bag size	width 40-140 within 200 length
Packing speed	1-60 bags/min
Sealing shape	stripe, back sealing/three side sealing (conventional back sealing)
Voltage power	220V/50HZ P≈0.6KW
Air supply	0.4-0.8MPA
Bag mouth shape	pattern knife tooth type
Dimensions	1850mm1250mm1650mm(LWH)
Weight	about 300KG

Automatic Screw Spare Part Counting Packaging Machine With Two Vibration Bowl Conveyor Hardware Packing Machine Feeder

Company Profile

Certifications

Exhibition

Buyer feedback

Packing & Delivery

FAQ

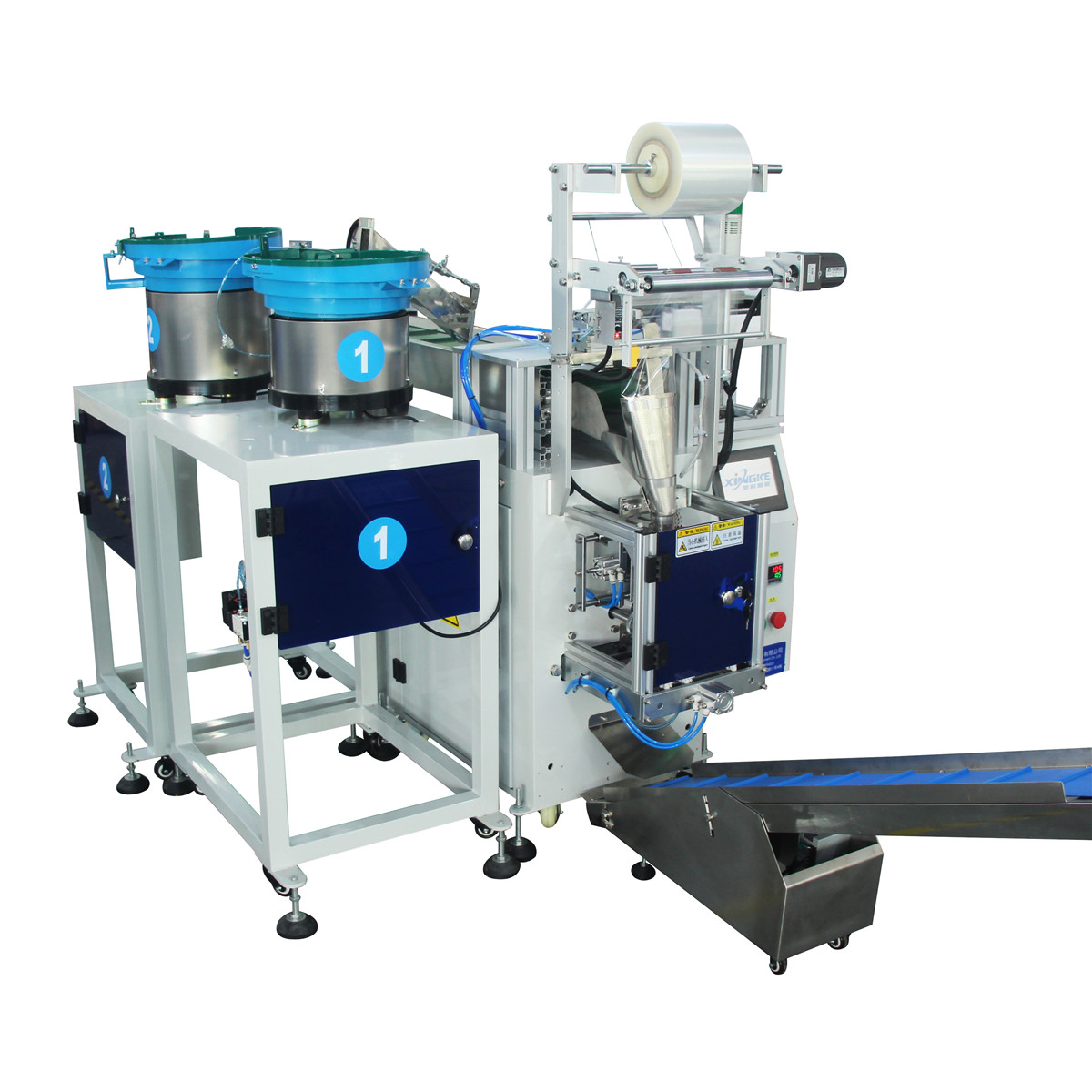

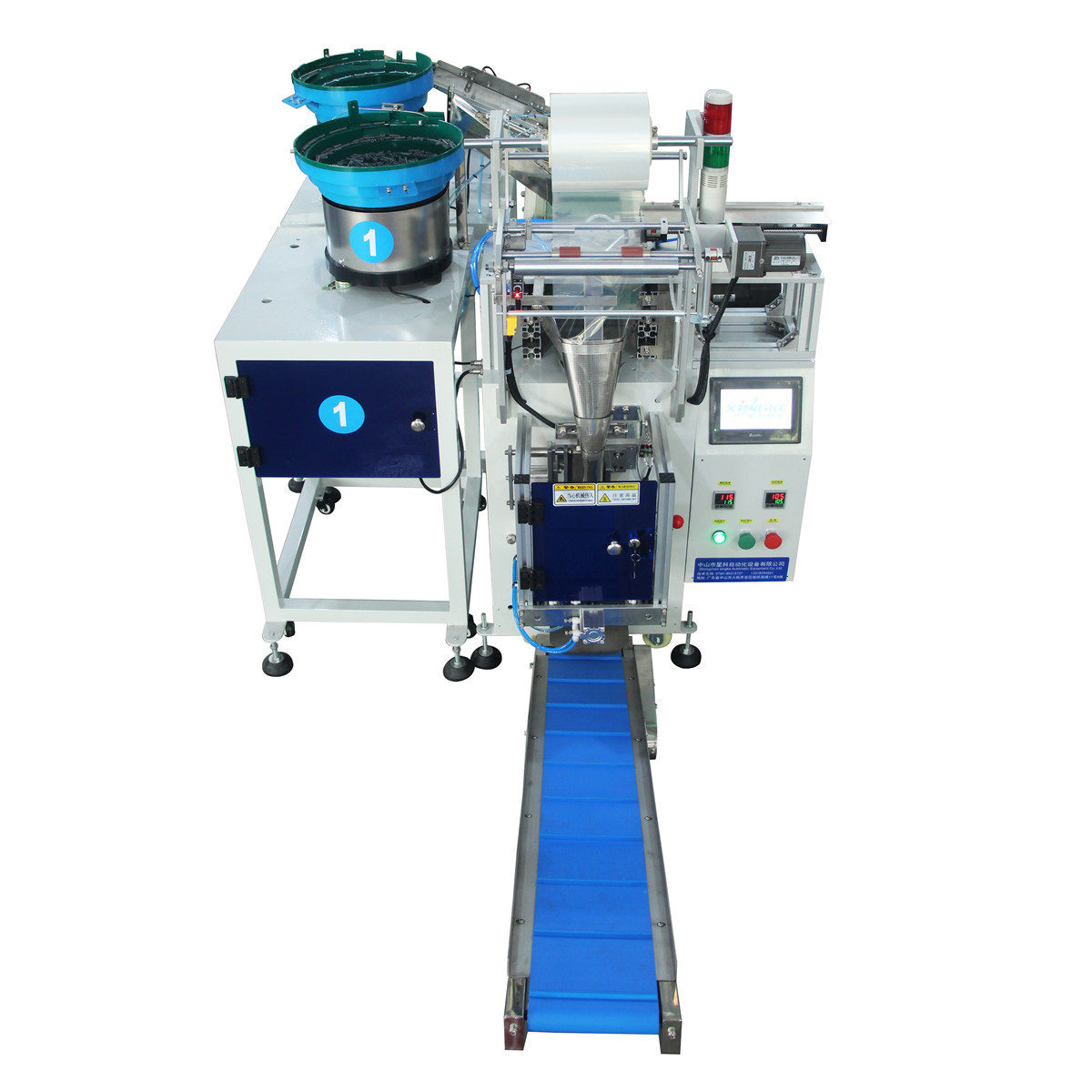

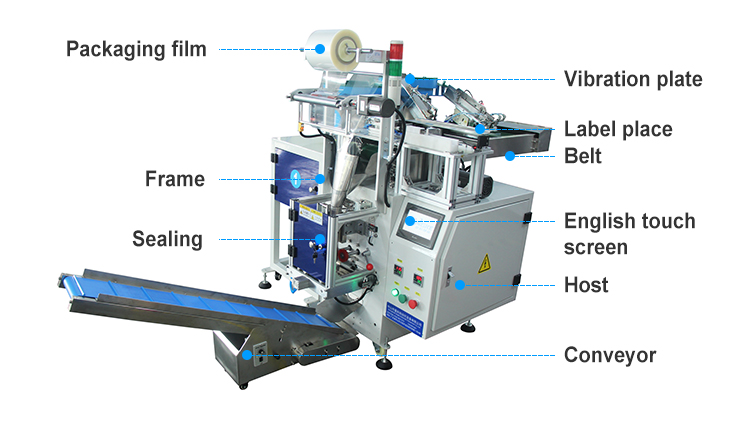

Automatic Screw Spare Part Counting Packaging Machine With Two Vibration Bowl Conveyor Hardware Packing Machine Feeder Images
